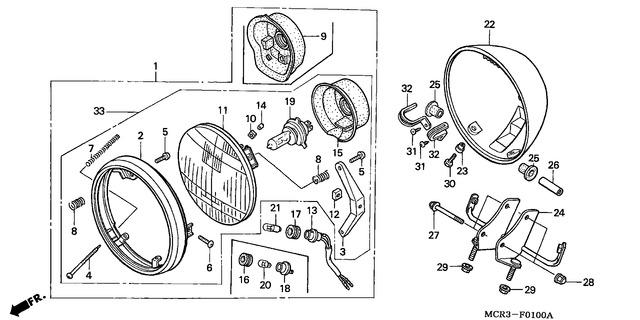

Honda VT750DC2 (2002) F-01 HEADLIGHT (E / ED/F/H/KO/U/2ED)
F-01 HEADLIGHT (E / ED/F/H/KO/U/2ED)
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Discontinued (61313-MCR-D00) |
|
||
| 2 |
Rim, Headlight (33101-MK7-671) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm F / Mk H H / Mk F F / Mm | €73.41 |
|
| 2 |
Rim Comp., Headlight (33101-KEB-620) |
E / Mk E E / Mm | €83.04 |
|
| 3 |
Stay (33102-MK7-671) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €11.45 |
|
| 4 |
Screw, Beam Adjusting (33103-MK7-671) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €2.32 |
|
| 5 |
Screw, Special (33104-MK7-671) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €1.82 |
|
| 6 |
Screw, Special (33106-MK7-671) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €1.82 |
|
| 7 |
Spring, Beam Adjusting (33107-MK7-671) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €3.25 |
|
| 8 |
Spring, Setting (33108-MK7-671) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €2.29 |
|
| 9 |
Discontinued (61313-MCR-D00) |
|
||
| 10 |
Nut, Beam Adjusting (Stan (33117-415-003) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €3.25 |
|
| 11 |
Headlight Unit (33120-MN2-751) |
H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm F / Mk H H / Mk F F / Mm | €113.58 |
|
| 12 |
Nut, Unit Holder (33128-471-003) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €2.32 |
|
| 13 |
Socket Assy., Position Li (33130-MN2-601) |
H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm F / Mk H H / Mk F F / Mm | €15.13 |
|
| 14 |
Cover, Adjusting Screw (33136-111-671) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €2.68 |
|
| 15 |
Cover, Rubber (33180-MJ0-010) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm F / Mk H H / Mk F F / Mm | €19.22 |
|
| 16 |
Discontinued (61313-MCR-D00) |
|
||
| 17 |
Rubber, Joint (33905-371-601) |
H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm F / Mk H H / Mk F F / Mm | €4.82 |
|
| 18 |
Discontinued (61313-MCR-D00) |
|
||
| 19 |
Bulb, Headlight (12V 60/5 (34901-MC7-602) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm F / Mk H H / Mk F F / Mm | €50.79 |
|
| 19 |
Bulb, Headlight (Osram) ( (34901-MAK-000) |
E / Mk E E / Mm | €20.76 |
|
| 20 |
Bulb (12V 4W) (Osram) (34903-MAK-000) |
E / Mk E E / Mm | €4.35 |
|
| 21 |
Bulb, Position (12V 4W) ( (34903-388-611) |
H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm F / Mk H H / Mk F F / Mm | €3.71 |
|
| 22 |
Case, Headlight (61301-MN0-003) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €138.68 |
|
| 23 |
Collar, Headlight Setting (61304-KR3-980) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €3.25 |
|
| 24 |
Stay, Headlight (61313-MCR-D00) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €45.23 |
|
| 25 |
Rubber, Headlight Mountin (61315-MZ5-000) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €2.53 |
|
| 26 |
Collar, Headlight Stay (61316-MK7-000) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €2.68 |
|
| 27 |
Bolt,Cap 6Mm (90132-MK7-000) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €2.68 |
|
| 28 |
Nut, Cap, 6Mm (90201-425-700) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €3.28 |
|
| 29 |
Nut, U, 6Mm (Fuse Rashi) (90301-473-003) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €5.20 |
|
| 30 |
Bolt-Washer, 5X20 (93402-0502000) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €1.00 |
|
| 31 |
Screw, Tapping, 4X10 (93901-34210) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €0.57 |
|
| 32 |
Clip, 4X90 (94591-49000) |
U / Mm U U / Mk H / Mm Ko / Mm Ko / Mk Ed / Mk Ed / 25K Ed Ed / Mm E / Mk E E / Mm F / Mk H H / Mk F F / Mm | €3.06 |
|
| 33 |
Discontinued (61313-MCR-D00) |
|
