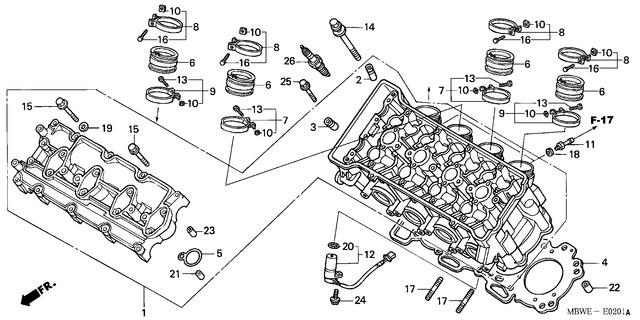

Honda CBR600F43 (2003) E-02 CYLINDER HEAD
E-02 CYLINDER HEAD
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Head Assy., Cylinder (12010-MBW-A30) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €1,767.45 |
|
| 2 |
Guide, In. Valve (O.S.) (12204-MBW-305) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €16.30 |
|
| 3 |
Discontinued (90430-PD6-003) |
|
||
| 4 |
Gasket, Cylinder Head (12251-MBW-013) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €94.49 |
|
| 5 |
Gasket, Plug Hole (12395-MBW-003) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €5.14 |
|
| 6 |
Limited Quantity Available Please Contact Us (00000-000-000) |
|
||
| 6 |
Insulator, Throttle Body (16211-MBW-J20) |
U / F 4 Cm / F 4 | €19.37 |
|
| 7 |
Band B, Insulator (16216-MBW-J20) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €7.81 |
|
| 8 |
Band, Insulator (16217-MBW-J20) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €7.81 |
|
| 9 |
Band, Insulator (16218-MBW-000) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €7.81 |
|
| 10 |
Nut, Square, 5Mm (16222-MV4-300) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €1.97 |
|
| 11 |
Joint, Boost (17113-KEA-000) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €5.92 |
|
| 12 |
Pulser Assy., Cam (36140-MBW-J21) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €157.59 |
|
| 13 |
Bolt, Recessed, 5X20 (90005-MBW-000) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €2.18 |
|
| 14 |
Bolt-Washer, 9X90 (90007-MBW-000) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €10.20 |
|
| 15 |
Bolt, Flange, 6X39.5 (90019-MA6-000) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €3.04 |
|
| 16 |
Bolt, Recessed, 5X28 (90023-MM5-000) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €2.25 |
|
| 17 |
Bolt, Stud, 8X24 (90035-MM5-000) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €6.49 |
|
| 18 |
Washer, Sealing, 5Mm (90452-323-000) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €1.93 |
|
| 19 |
Washer, Sealing, 6Mm (90430-PD6-003) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €4.39 |
|
| 20 |
O-Ring, 16X2.1 (Nok) (91309-PX4-003) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €3.46 |
|
| 21 |
Dowel Pin, 8X20 (94301-08200) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €2.82 |
|
| 22 |
Dowel Pin, 10X16 (94301-10160) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €2.07 |
|
| 23 |
Dowel,Pin,8X20 (94302-08200) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €1.93 |
|
| 24 |
Bolt, Flange, 6X18 (95701-0601807) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €1.14 |
|
| 25 |
Bolt, Flange, 6X45 (96001-0604500) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €1.93 |
|
| 26 |
Plug, Spark (Imr9C-9H) (N (31912-MBW-E11) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €47.87 |
|
| 26 |
Plug, Spark (Vuh24D) (Den (31921-MBW-E12) |
Ko / Cmj F 4 Ko / F 4 | €59.81 |
|
| 26 |
Plug, Spark (Vuh27D) (Den (31922-MBW-E12) |
U / F 4 Cm / F 4 Ko / Cmj F 4 Ko / F 4 | €59.81 |
|
| 26 |
Plug, Spark (Imr8C-9H) (N (31911-MBW-E11) |
Ko / Cmj F 4 Ko / F 4 | €47.87 |
|
