Honda TRX250TE4 (2004) EOP02 GASKET KIT B

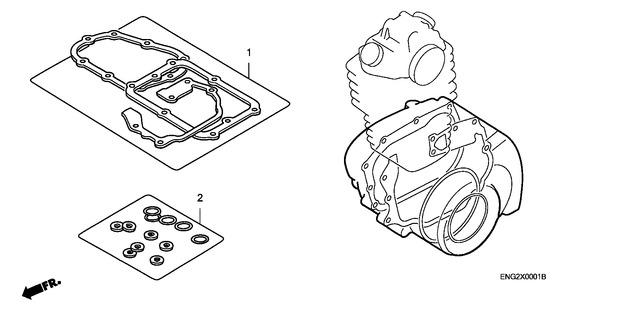

EOP02 GASKET KIT B
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Gasket Sheet Kit B (06115-HM8-A50) |
U / Ec Ref | €71.23 |
|
| 1 |
Gasket, Fr. Crankcase Cov (11394-HM8-000) |
U / Ec Ref | €25.29 |
|
| 1 |
Gasket, Rr. Crankcase Cov (11395-HM8-A40) |
U / Ec Ref | €17.52 |
|
| 1 |
Gasket, Crankcase (11191-HM8-000) |
U / Ec Ref | €17.12 |
|
| 2 |
O-Ring, Control Motor (91351-HM8-A51) |
U / Ec Ref | €5.50 |
|
| 2 |
Washer, Drain Plug, 12Mm (94109-12000) |
U / Ec Ref | €0.92 |
|
| 2 |
O-Ring,24.4X3.1 (91312-MG7-003) |
U / Ec Ref | €6.63 |
|
| 2 |
O-Ring,13.8X2.5 (91303-MG7-003) |
U / Ec Ref | €4.71 |
|
| 2 |
O-Ring, Reduction Gear Co (11337-HM8-A50) |
U / Ec Ref | €7.34 |
|
| 2 |
O-Ring, 44.1X2.2 (Nok) (91302-P0Z-003) |
U / Ec Ref | €1.64 |
|
| 2 |
O-RING, 8X1.7 (ARAI) (91306-HB3-003) |
U / Ec Ref | €2.46 |
|
| 2 |
O-Ring, 83.5X1.5 (91301-HM8-A40) |
U / Ec Ref | €7.45 |
|
| 2 |
O-Ring, 18X3 (Arai) (91307-KF0-003) |
U / Ec Ref | €2.50 |
|
| 2 |
O-Ring, 18.3X2.4 (Nok) (91321-PF4-004) |
U / Ec Ref | €3.00 |
|
| 2 |
O-Ring, 16.8X1.9 (91308-HM8-A51) |
U / Ec Ref | €3.46 |
|
| 2 |
O-Ring, 1.5X9.5 (91306-MG3-000) |
U / Ec Ref | €2.68 |
|
| 2 |
Washer, Sealing, 6Mm (90442-397-000) |
U / Ec Ref | €2.46 |
|
