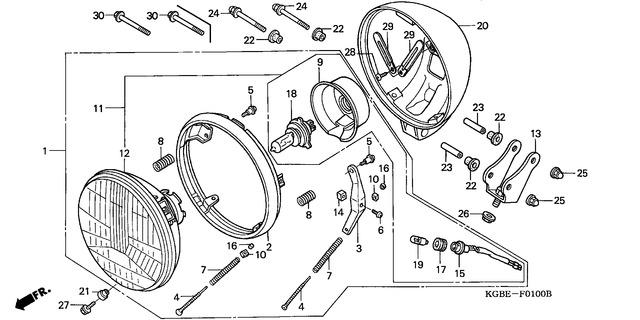

Honda VT125C4 (2004) F-01 HEADLIGHT

F-01 HEADLIGHT
Ref. Description Area Price Quantity
1 Discontinued
(33102-MK7-671)
2 Rim Comp., Headlight (33101-KEB-620)
 E / Mkh €83.04
2 Rim, Headlight (33101-MK7-671)
 F / Cmf Kph Ed / Kph €73.41
3 Stay (33102-MK7-671)
 F / Cmf Kph Ed / Kph E / Mkh €11.45
4 Screw, Beam Adjusting (33103-MK7-671)
 F / Cmf Kph Ed / Kph E / Mkh €2.32
5 Screw, Special (33104-MK7-671)
 F / Cmf Kph Ed / Kph E / Mkh €1.82
6 Screw, Special (33106-MK7-671)
 F / Cmf Kph Ed / Kph E / Mkh €1.82
7 Spring, Beam Adjusting (33107-MK7-671)
 F / Cmf Kph Ed / Kph E / Mkh €3.25
8 Spring, Setting (33108-MK7-671)
 F / Cmf Kph Ed / Kph E / Mkh €2.29
9 Cover, Rubber (33180-MJ0-010)
 F / Cmf Kph Ed / Kph €19.22
10 Nut, Beam Adjusting (Stan (33117-415-003)
 F / Cmf Kph Ed / Kph E / Mkh €3.25
11 Discontinued
(33102-MK7-671)
12 Headlight Unit (33120-MN2-751)
 F / Cmf Kph Ed / Kph €113.58
13 Discontinued
(33102-MK7-671)
14 Nut, Unit Holder (33128-471-003)
 F / Cmf Kph Ed / Kph E / Mkh €2.32
15 Socket Assy., Position Li (33130-MN2-601)
 F / Cmf Kph Ed / Kph €15.13
16 Cover, Adjusting Screw (33136-111-671)
 F / Cmf Kph Ed / Kph E / Mkh €2.68
17 Rubber, Joint (33905-371-601)
 F / Cmf Kph Ed / Kph €4.82
18 Bulb, Headlight (Osram) ( (34901-MAK-000)
 E / Mkh €20.76
18 Bulb, Headlight (12V 60/5 (34901-MC7-602)
 F / Cmf Kph Ed / Kph €50.79
19 Bulb, Position (12V 4W) ( (34903-388-611)
 F / Cmf Kph Ed / Kph €3.71
19 Bulb (12V 4W) (Osram) (34903-MAK-000)
 E / Mkh €4.35
20 Discontinued
(33102-MK7-671)
21 Collar, Headlight Setting (61304-KR3-980)
 F / Cmf Kph Ed / Kph E / Mkh €3.25
22 Rubber, Headlight Mountin (61315-MK7-000)
 F / Cmf Kph Ed / Kph E / Mkh €2.68
23 Collar, Headlight Stay (61316-MK7-000)
 F / Cmf Kph Ed / Kph E / Mkh €2.68
25 Nut, Open Stay, 6Mm (90301-693-000)
 F / Cmf Kph Ed / Kph E / Mkh €4.11
26 Nut, U, Flange. 10Mm (90304-GBL-003)
 F / Cmf Kph Ed / Kph E / Mkh €4.21
27 Bolt-Washer, 5X20 (93402-0502000)
 F / Cmf Kph Ed / Kph E / Mkh €1.00
28 Screw, Tapping, 4X10 (93901-34210)
 F / Cmf Kph Ed / Kph E / Mkh €0.57
29 Clip, 4X90 (94591-49000)
 F / Cmf Kph Ed / Kph E / Mkh €3.06
30 Bolt, Flange, 6X50 (95801-0605007)
 F / Cmf Kph Ed / Kph E / Mkh €1.39
