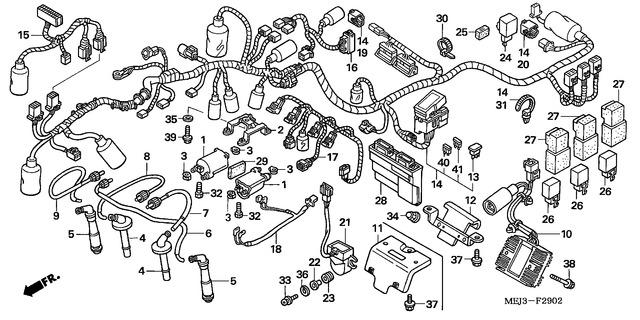

Honda CB1300S5 (2005) F-29-02 WIRE HARNESS / IGNITION COIL (CB1300S/SA)

F-29-02 WIRE HARNESS / IGNITION COIL (CB1300S/SA)
Ref. Description Area Price Quantity
1 Coil Comp., Ignition (Tec (30510-MM8-003)
 U / Kph €151.43
2 Stay, Ignition Coil (30515-MEJ-000)
 U / Kph €28.97
3 Spacer, Ignition Coil (30520-ML7-000)
 U / Kph €4.07
4 Cap Assy., Noise Suppress (30700-MEJ-641)
 U / Kph €23.37
5 Cap Assy., Noise Suppress (30701-MEJ-641)
 U / Kph €23.37
6 Cord Assy., High Tension (30751-MEJ-640)
 U / Kph €22.26
7 Cord Assy., High Tension (30752-MEJ-640)
 U / Kph €21.23
8 Cord Assy., High Tension (30753-MEJ-640)
 U / Kph €23.11
9 Cord Assy., High Tension (30754-MEJ-640)
 U / Kph €21.23
10 Rectifier Assy., Regulate (31600-MEJ-721)
 U / Kph €229.00
12 Stay, Regulate Rectifier (31601-MEJ-000)
 U / Kph €19.51
13 Diode Assy., Three Way (S (31730-MAS-601)
 U / Kph €29.72
14 Limited Quantity Available
Please Contact Us
(00000-000-000)
15 Limited Quantity Available
Please Contact Us
(00000-000-000)
17 Sub Harness, Injector (32103-MEJ-900)
 U / Kph €120.53
18 Sub Harness, Ignition Coi (32115-MEJ-000)
 U / Kph €35.50
19 Cap, Dummy (4P) (Red) (32606-GEV-761)
 U / Kph €5.95
20 Cap, Dummy (6P) (Natural) (32606-MEL-D01)
 U / Kph €8.99
21 Sensor Comp., Bank Angle (35161-MEJ-013)
 U / Kph €162.15
22 Collar (35162-MN5-003)
 U / Kph €6.57
23 Grommet (35163-MN5-003)
 U / Kph €3.25
24 Relay Comp., Winker (Dens (38301-MBW-D21)
 U / Kph €38.73
25 Suspension, Winker Relay (38306-GE8-008)
 U / Kph €4.07
26 Relay Comp., Starter (Mit (38501-GN2-014)
 U / Kph €40.63
27 Suspension, Starter Relay (38506-GC7-611)
 U / Kph €4.99
28 Discontinued
(94111-04800)
29 Cushion, Ignition Coil (64253-MEJ-000)
 U / Kph €1.93
30 Band, Wire, 165Mm (Black) (90651-KV6-003)
 U / Kph €4.46
31 Band, Wire Harness (Natur (91547-P45-003)
 U / Kph €2.18
32 Bolt, Hex., 6X20 (92101-060204J)
 U / Kph €1.93
33 Screw-Washer, 4X20 (93891-0402000)
 U / Kph €0.60
34 Nut, Cap, 6Mm (94021-060000S)
 U / Kph €1.50
35 Washer, Plain, 8Mm (94101-08800)
 U / Kph €0.47
36 Washer, Spring, 4Mm (94111-04800)
 U / Kph €0.64
37 Bolt, Flange, 6X12 (95701-0601208)
 U / Kph €1.03
38 Limited Quantity Available
Please Contact Us
(95701-0603008)
39 Bolt, Flange, 8X14 (95701-0801408)
 U / Kph €1.28
40 Fuse, Mini (10A) (98200-41000)
 U / Kph €1.00
41 Fuse, Mini (20A) (98200-42000)
 U / Kph €1.00
