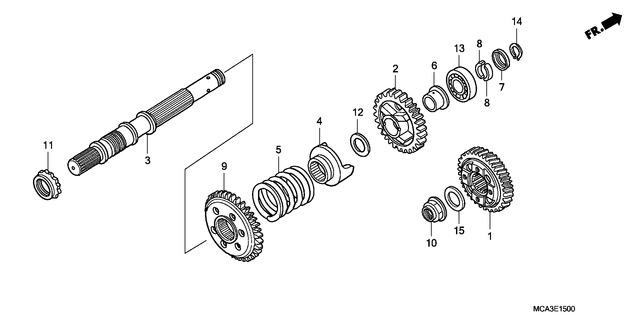

Honda GL18006 (2006) E-15 FINAL SHAFT

E-15 FINAL SHAFT
Ref. Description Area Price Quantity
1 Gear Comp., Final Drive ( (23500-MCA-A20)
 U / Gh Ed F / Cmf Gh Ed / Gh Ek / Gh Br E / Gh €269.95
2 Gear, Final Driven (36T) (23521-MCA-000)
 U / Gh Ed F / Cmf Gh Ed / Gh Ek / Gh Br E / Gh €154.24
3 Shaft, Final Gear (23611-MEC-000)
 U / Gh Ed F / Cmf Gh Ed / Gh Ek / Gh Br E / Gh €190.08
4 Lifter, Final Damper (23721-MCA-780)
 U / Gh Ed F / Cmf Gh Ed / Gh Ek / Gh Br E / Gh €50.58
5 Spring, Final Damper (23732-MCA-000)
 U / Gh Ed F / Cmf Gh Ed / Gh Ek / Gh Br E / Gh €56.51
6 Collar, 22X26X27.6 (23733-MN5-000)
 U / Gh Ed F / Cmf Gh Ed / Gh Ek / Gh Br E / Gh €16.20
7 Retainer, Final Shaft (23741-MN5-000)
 U / Gh Ed F / Cmf Gh Ed / Gh Ek / Gh Br E / Gh €3.32
8 Washer, Spring Stopper (23742-MN5-000)
 U / Gh Ed F / Cmf Gh Ed / Gh Ek / Gh Br E / Gh €9.95
9 Gear, Reverse Driven (45T (28178-MCA-000)
 U / Gh Ed F / Cmf Gh Ed / Gh Ek / Gh Br E / Gh €122.89
10 Nut, Special, 22Mm (90205-MCA-780)
 U / Gh Ed F / Cmf Gh Ed / Gh Ek / Gh Br E / Gh €14.70
11 Nut, Lock, 30Mm (90241-MB0-000)
 U / Gh Ed F / Cmf Gh Ed / Gh Ek / Gh Br E / Gh €18.27
12 Washer, 22.2X35X2.6 (90498-MN5-000)
 U / Gh Ed F / Cmf Gh Ed / Gh Ek / Gh Br E / Gh €5.20
13 Bearing, Radial Ball, 22X (91003-MCA-003)
 U / Gh Ed F / Cmf Gh Ed / Gh Ek / Gh Br E / Gh €31.75
14 Circlip, External, 22Mm (94510-22000)
 U / Gh Ed F / Cmf Gh Ed / Gh Ek / Gh Br E / Gh €0.92
15 Washer, 22.1X36X2.6 (90498-MEC-000)
 U / Gh Ed F / Cmf Gh Ed / Gh Ek / Gh Br E / Gh €6.42
