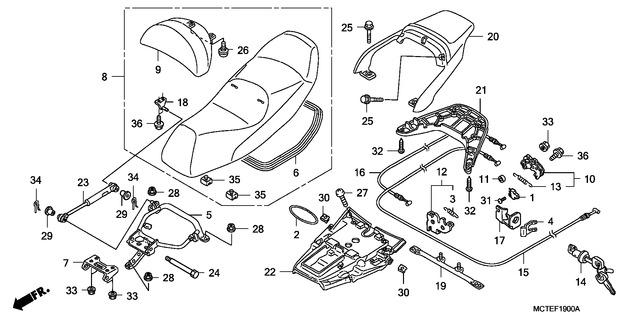

Honda FJS600A6 (2006) F-19 SEAT

F-19 SEAT
Ref. Description Area Price Quantity
1 Switch Assy., Clutch (35330-MB0-003)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €22.90
2 Band, U-Lock (50290-MBL-610)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €2.14
3 Spring (50513-GBL-000)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €3.75
4 Spring, Lock Key Setting (75581-GN8-920)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €4.78
5 Stay, Seat Hinge (77110-MCT-010)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €142.53
6 Rubber, Seal (77114-MCT-000)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €24.11
7 Hinge, Seat (77115-MCT-000)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €11.77
8 Seat Comp., Double (77200-MCT-640)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €842.67
9 Backrest Assy. (77210-MCT-640)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €98.41
10 Catch Comp., Rr. Seat (77220-MEF-000)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €46.26
11 Limited Quantity Available
Please Contact Us
(77227-KPB-000)
12 Catch Comp., Seat (77230-MCT-000)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €52.08
13 Spring, Seat Catch (77236-GBL-000)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €4.96
14 Key, Seat Lock (77239-MCT-007)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €26.29
15 Cable A, Seat Open (77240-MCT-010)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €19.11
16 Cable B, Seat Open (77241-MCT-010)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €13.23
17 Stay, Seat Lock Cable (77242-MCT-000)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €7.88
18 Stay, Damper (77244-MCT-000)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €6.74
19 Limited Quantity Available
Please Contact Us
(77250-MCT-010)
20 Spoiler, Rr. *Nh471M * (77310-MCT-000ZA)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €379.32
21 Cover, Rr. Spoiler *Nh169 (77315-MCT-000ZA)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €22.98
22 Cover, Seat Under (77401-MCT-030)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €34.75
23 Damper, Opener (83590-MCT-003)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €58.54
24 Bolt, Seat Hinge (90105-MCT-000)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €5.18
25 Bolt, Flange, 8X35 (90107-MCT-000)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €2.82
26 Screw, Pan, 6X16 (90113-KPB-000)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €2.71
27 Screw, Truss, 6X16 (90131-S0X-A00)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €2.35
28 Nut, Flange, 8Mm (90302-SH3-003)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €3.25
29 Washer, Fr. Cover Setting (90501-124-000)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €3.64
30 Nut, Clip, 5Mm (90677-KAN-T00)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €3.60
31 Screw-Washer, 4X14 (93893-0401408)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €0.92
32 Screw, Tapping, 5X12 (93904-35210)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €0.54
33 Nut, Flange, 6Mm (94050-06000)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €1.14
34 Pin, Lock, 6Mm (94251-06000)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €0.90
35 Rubber A, Stand Stopper (95011-61000)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €1.22
36 Bolt, Flange, 6X12 (95701-0601200)
 Ko / Abs Ed / Abs E / Abs Mph F / Abs Cmf Ek / Abs €1.03
