Honda TRX500FA7 (2007) E-18 GEARSHIFT DRUM

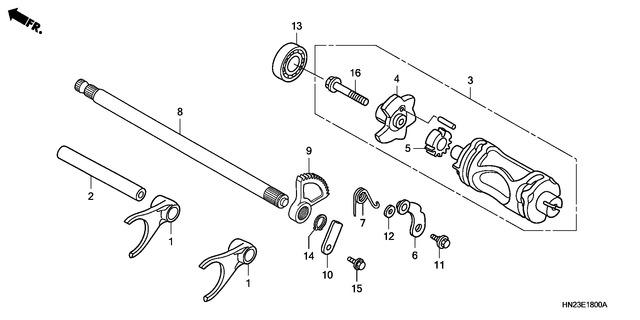

E-18 GEARSHIFT DRUM
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Fork, Fr. Gear Shift (24211-HN2-000) |
U / Kph | €70.87 |
|
| 2 |
Shaft, Gearshift Fork (24241-HN2-000) |
U / Kph | €16.73 |
|
| 3 |
Drum Assy., Gearshift (24300-HN2-000) |
U / Kph | €230.61 |
|
| 4 |
Center, Gearshift Drum (24321-HN2-003) |
U / Kph | €30.21 |
|
| 5 |
Gear, Drum Shifter (24331-HN2-003) |
U / Kph | €23.19 |
|
| 6 |
Stopper Comp., Gearshift (24430-HB3-000) |
U / Kph | €8.63 |
|
| 7 |
Spring, Shift Drum Stoppe (24435-HM7-000) |
U / Kph | €3.42 |
|
| 8 |
Spindle, Gearshift (24681-HN2-A20) |
U / Kph | €85.14 |
|
| 9 |
Arm, Gearshift (24682-HN2-003) |
U / Kph | €24.37 |
|
| 10 |
Plate, Change Spindle (24685-HN2-000) |
U / Kph | €4.43 |
|
| 11 |
Pivot, Shift Drum Stopper (90022-MG8-000) |
U / Kph | €2.53 |
|
| 12 |
Washer, Drum Stopper (90417-360-000) |
U / Kph | €1.99 |
|
| 13 |
Bearing, Radial Ball, 620 (91012-HC5-004) |
U / Kph | €12.84 |
|
| 14 |
Circlip, External, 12Mm (94510-12000) |
U / Kph | €0.68 |
|
| 15 |
Bolt, Flange, 6X16 (95701-0601600) |
U / Kph | €1.03 |
|
| 16 |
Bolt, Flange, 8X35 (95801-0803500) |
U / Kph | €1.64 |
|
