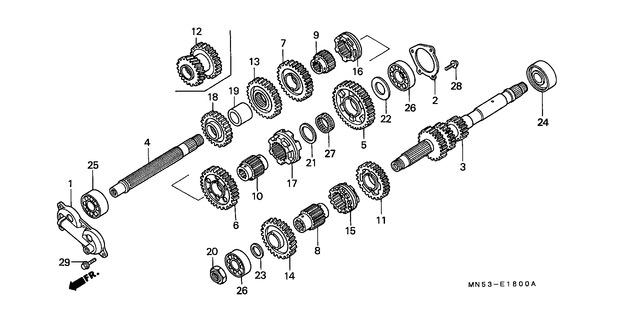

Honda GL1500K (1989) E-18 TRANSMISSION
E-18 TRANSMISSION
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Holder Comp., Transmissio (23150-MN5-000) |
Sw / Kph Sp / Kph Sd / Kph Ed / Kph Ar / Kph It / Kph B / Kph E / Mkh G / Kph F / Kph Yb Fi / Kph N / Kph | €51.68 |
|
| 2 |
Plate, Countershaft Beari (23161-MN5-000) |
Sw / Kph Sp / Kph Sd / Kph Ed / Kph Ar / Kph It / Kph B / Kph E / Mkh G / Kph F / Kph Yb Fi / Kph N / Kph | €13.59 |
|
| 3 |
Discontinued (90467-MN5-000) |
|
||
| 4 |
Limited Quantity Available Please Contact Us (23220-MN5-000) |
|
||
| 5 |
Limited Quantity Available Please Contact Us (23421-MN5-000) |
|
||
| 6 |
Limited Quantity Available Please Contact Us (23441-MN5-000) |
|
||
| 7 |
Limited Quantity Available Please Contact Us (23451-MN5-000) |
|
||
| 8 |
Discontinued (90467-MN5-000) |
|
||
| 9 |
Limited Quantity Available Please Contact Us (23456-MN5-000) |
|
||
| 10 |
Limited Quantity Available Please Contact Us (23457-MN5-000) |
|
||
| 11 |
Gear, Mainshaft Fourth (2 (23461-MN5-000) |
Sw / Kph Sp / Kph Sd / Kph Ed / Kph Ar / Kph It / Kph B / Kph E / Mkh G / Kph F / Kph Yb Fi / Kph N / Kph | €146.85 |
|
| 12 |
Limited Quantity Available Please Contact Us (23471-MN5-000) |
|
||
| 14 |
Gear, Mainshaft Fifth (29 (23481-MN5-000) |
Sw / Kph Sp / Kph Sd / Kph Ed / Kph Ar / Kph It / Kph B / Kph E / Mkh G / Kph F / Kph Yb Fi / Kph N / Kph | €155.52 |
|
| 15 |
Limited Quantity Available Please Contact Us (23483-MT2-000) |
|
||
| 16 |
Limited Quantity Available Please Contact Us (23484-MT2-000) |
|
||
| 17 |
Limited Quantity Available Please Contact Us (23485-MT2-000) |
|
||
| 20 |
Nut,Hex 22Mm L (90201-MZ0-000) |
Sw / Kph Sp / Kph Sd / Kph Ed / Kph Ar / Kph It / Kph B / Kph E / Mkh G / Kph F / Kph Yb Fi / Kph N / Kph | €8.00 |
|
| 21 |
Washer,35.2X46X1. (90467-MN5-000) |
Sw / Kph Sp / Kph Sd / Kph Ed / Kph Ar / Kph It / Kph B / Kph E / Mkh G / Kph F / Kph Yb Fi / Kph N / Kph | €5.14 |
|
| 22 |
Washer, 25X47X2.6 (90468-MN5-000) |
Sw / Kph Sp / Kph Sd / Kph Ed / Kph Ar / Kph It / Kph B / Kph E / Mkh G / Kph F / Kph Yb Fi / Kph N / Kph | €5.39 |
|
| 23 |
Washer, 25X40X2.6 (90471-MN5-000) |
Sw / Kph Sp / Kph Sd / Kph Ed / Kph Ar / Kph It / Kph B / Kph E / Mkh G / Kph F / Kph Yb Fi / Kph N / Kph | €6.06 |
|
| 24 |
Bearing, Ball, 28X54X20.6 (91001-MN5-003) |
Sw / Kph Sp / Kph Sd / Kph Ed / Kph Ar / Kph It / Kph B / Kph E / Mkh G / Kph F / Kph Yb Fi / Kph N / Kph | €32.31 |
|
| 25 |
B/Brg Rad N/Com (91003-MN5-003) |
Sw / Kph Sp / Kph Sd / Kph Ed / Kph Ar / Kph It / Kph B / Kph E / Mkh G / Kph F / Kph Yb Fi / Kph N / Kph | €28.54 |
|
| 26 |
Discontinued (90467-MN5-000) |
|
||
| 27 |
Discontinued (90467-MN5-000) |
|
||
| 28 |
Bolt, Flange, 6X16 (95701-0601608) |
Sw / Kph Sp / Kph Sd / Kph Ed / Kph Ar / Kph It / Kph B / Kph E / Mkh G / Kph F / Kph Yb Fi / Kph N / Kph | €1.03 |
|
| 29 |
Bolt, Flange, 6X20 (95701-0602008) |
Sw / Kph Sp / Kph Sd / Kph Ed / Kph Ar / Kph It / Kph B / Kph E / Mkh G / Kph F / Kph Yb Fi / Kph N / Kph | €1.03 |
|
