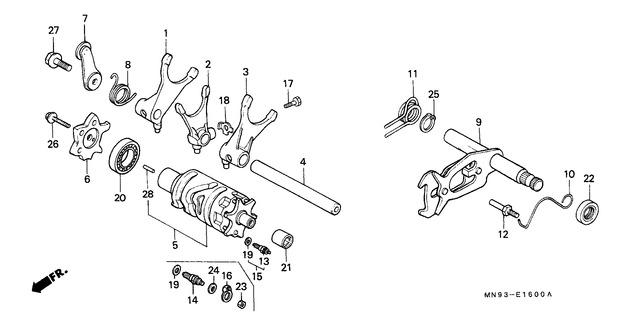

Honda NX650K (1989) E-16 SHIFT DRUM

E-16 SHIFT DRUM
Ref. Description Area Price Quantity
1 Fork, R. Gearshift (24211-MG3-000)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €98.66
2 Fork, Center Gearshift (24212-MG3-000)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €99.84
3 Fork, L. Gearshift (24213-MK2-680)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €79.58
4 Shaft, Gearshift Fork Gui (24241-MK2-000)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €22.76
5 Drum Comp., Gearshift (24300-MG2-000)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €178.07
6 Cam, Gearshift (24411-MG3-020)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €19.51
7 Stopper Comp., Gearshift (24430-MG3-000)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €15.73
8 Spring, Shift Drum Stoppe (24435-MG3-010)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €3.64
9 Spindle Comp., Gearshift (24610-MK5-010)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €109.08
10 Spring, Gearshift Reset (24624-MT3-000)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €4.07
11 Spring, Gearshift Return (24651-KF0-013)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €5.67
12 Pin, Shift Return Spring (24652-028-000)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €4.35
13 Switch Assy., Neutral (To (35600-KE8-003)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €21.87
14 Switch Assy., Neutral (35600-MK4-860)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €21.48
16 Guide, Neutral Switch (35601-KG0-000)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €10.06
17 Bolt, Special, 7X18 (90041-MB0-000)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €2.71
18 Washer, Lock (90407-MB0-000)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €2.68
19 Washer, Oil Bolt (90545-300-000)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €2.53
20 Bearing, Radial Ball, 20X (91072-MR7-003)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €15.90
21 Bearing, Needle, 12X16X10 (91053-719-005)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €36.14
22 Oil Seal, 14X28X7 (Arai) (91202-965-003)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €5.42
23 Nut, Hex., 4Mm (94001-040000S)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €0.90
24 Washer, Spring, 4Mm (94111-04800)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €0.64
25 Circlip, External, 14Mm (94510-14000)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €0.75
26 Bolt, Flange, 6X20 (95701-0602000)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €1.14
27 Bolt, Flange, 8X20 (95701-0802000)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €1.03
28 Roller, 3X8.5 (96220-30085)
 U Sd Sw Sp B E / Mkh Ed F / Yb It €0.64
