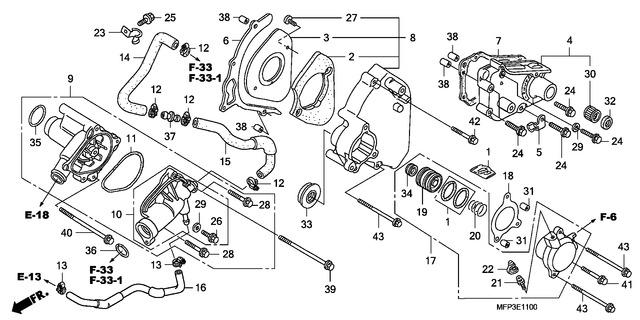

Honda CB1300S8 (2008) E-11 LEFT REAR COVER / WATER PUM P

E-11 LEFT REAR COVER / WATER PUM P
Ref. Description Area Price Quantity
1 O-Ring Set (04121-MEJ-305)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €6.99
2 Rubber, L. Rr. Cover (11352-MZ1-000)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €17.16
3 Plate, L. Rr. Cover Rubbe (11353-MZ1-000)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €14.55
4 Holder Comp., L. Side (11360-MAZ-000)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €132.13
5 Clip, Reserve Tank Tube (11364-MAZ-000)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €5.24
6 Plate, Drive Chain Guide (11365-MAZ-000)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €17.91
7 Gasket, L. Side Holder (11394-MFV-000)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €9.16
8 Cover Assy., L. Rr. Crank (11650-MAZ-010)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €185.02
9 Pump Assy., Water (19200-MEJ-306)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €312.15
10 Cover Comp., Water Pump (19220-MEJ-306)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €87.58
11 Gasket, Water Pump Cover (19226-MM5-003)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €4.46
12 Clamp, Water Hose, 25Mm (19504-KY1-003)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €7.81
13 Limited Quantity Available
Please Contact Us
(19507-MAT-000)
14 Hose B, Bypass (19507-MEJ-000)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €15.02
15 Hose Set, Bypass (19508-MEJ-000)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €20.41
16 Hose C, Water (19530-MFP-D00)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €32.35
17 Cylinder Assy., Clutch Sl (22860-MEJ-003)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €103.16
18 Gasket, Slave Cylinder (22862-MGJ-D00)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €7.06
19 Piston, Slave Cylinder (22863-MEJ-003)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €30.57
20 Spring, Slave Cylinder (22864-MEJ-003)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €9.03
21 Screw, Bleeder (22866-MF2-711)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €6.49
22 Cap, Bleeder (43353-461-771)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €4.96
23 Clamp, Water Hose (50224-MEJ-000)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €5.71
24 Bolt, Flange, 6X40 (Nshf) (90004-GHB-710)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €2.50
25 Bolt, Flange, 6X14 (Nshf) (90006-GHB-620)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €2.82
26 Bolt, Flange, 6X12 (Ct200 (90013-883-000)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €3.46
27 Screw, Pan, 6X14 (90118-MR1-000)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €2.57
28 Bolt, Flange, 6X25 (Ct200 (90121-952-000)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €2.82
29 Washer, Sealing, 6Mm (90430-PD6-003)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €4.39
30 Bearing, Needle, 19X13X12 (91002-459-773)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €15.02
31 Dowel Pin, 8X10 (91103-429-000)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €4.35
32 Oil Seal, 13X22X5 (Arai) (91204-KE8-003)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €4.99
33 Oil Seal, 8X25X7 (Arai) (91204-MG8-003)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €5.17
34 Oil Seal, 8X18X5 (91209-MB0-003)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €4.17
35 O-Ring, 32.95X2.62 (Arai) (91302-MB0-013)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €4.28
36 O-Ring, 24X3 (91312-KM9-003)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €3.75
37 Joint, Hose (91463-MEJ-000)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €12.13
38 Dowel Pin, 8X14 (94301-08140)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €1.75
39 Bolt, Flange, 6X100 (95701-0610000)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €2.32
40 Bolt, Flange, 6X85 (95801-0608500)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €1.71
41 Bolt, Flange, 6X25 (96001-0602500)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €1.57
42 Bolt, Flange, 6X45 (96001-0604500)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €1.93
43 Bolt, Flange, 6X75 (96001-0607500)
 U / Bct Two Ty2 U / Bct U / Bct Mk Two Ty2 €1.61
