Honda VFR1200FB (2011) F-01 HEADLIGHT

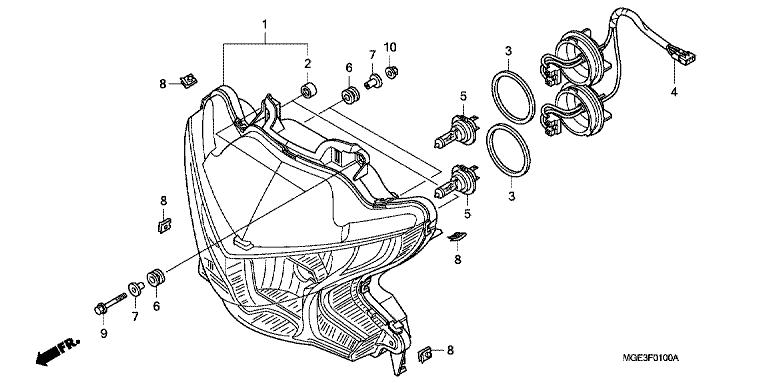

F-01 HEADLIGHT
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Headlight Unit (33102-MGE-641) |
E | €1,096.03 |
|
| 2 |
Pipe, Cp (33113-MEE-D01) |
E | €4.43 |
|
| 3 |
Gasket, Socket Cover (33114-MGE-641) |
E | €19.45 |
|
| 4 |
Socket Comp., Headlight (33130-MGE-641) |
E | €55.29 |
|
| 5 |
Bulb, H7 Ll (33110-SMG-E01HE) |
E | €13.52 |
|
| 6 |
Rubber, Oil Cup Mounting (43516-HA2-000) |
E | €3.89 |
|
| 7 |
Collar, 6.3X13 (50324-425-010) |
E | €5.74 |
|
| 8 |
Nut, Clip, 5Mm (90677-KAN-T00) |
E | €3.60 |
|
| 9 |
Bolt-Washer, 6X25 (93404-0602508) |
E | €1.22 |
|
| 10 |
Nut, Flange, 6Mm (94050-06000) |
E | €1.14 |
|
