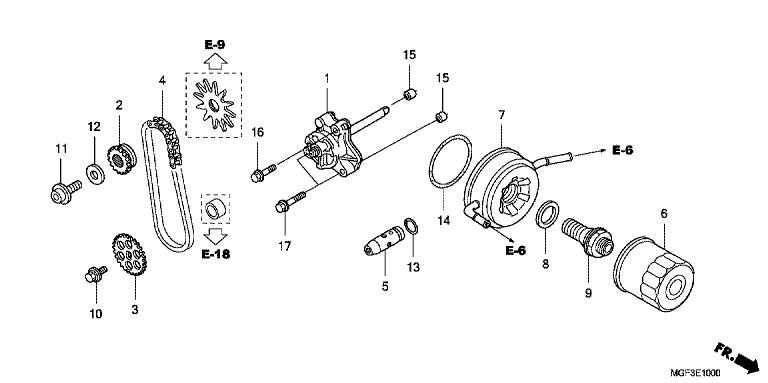

Honda FJS600AB (2011) E-10 OIL PUMP
E-10 OIL PUMP
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Pump Assy., Oil (15100-MCT-010) |
Ed | €69.67 |
|
| 2 |
Sprocket, Oil Pump Drive (15131-MCT-000) |
Ed | €39.67 |
|
| 3 |
Sprocket, Oil Pump Driven (15134-MV9-670) |
Ed | €16.30 |
|
| 4 |
Chain, Oil Pump (40L) (Da (15140-MCT-003) |
Ed | €21.25 |
|
| 5 |
Valve Assy., Relief (15220-MCT-010) |
Ed | €29.10 |
|
| 6 |
Cartridge, Oil Filter (Wa (15410-MFJ-D02) |
Ed | €15.41 |
|
| 7 |
Cooler Comp., Oil (15700-MCT-013) |
Ed | €439.28 |
|
| 8 |
Washer, Spring, 24Mm (23929-PX4-700) |
Ed | €9.95 |
|
| 9 |
Bolt, Oil Cooler (90019-MCT-000) |
Ed | €23.30 |
|
| 10 |
Bolt-Washer, 6X12 (90021-MM5-000) |
Ed | €3.53 |
|
| 11 |
Bolt, Special, 10Mm (90037-ME9-000) |
Ed | €6.10 |
|
| 12 |
Limited Quantity Available Please Contact Us (90405-MCT-000) |
|
||
| 13 |
O-Ring,14.7X2.2 (91313-MG7-004) |
Ed | €4.71 |
|
| 14 |
O-Ring, Oil Cooler (91354-MCT-003) |
Ed | €11.34 |
|
| 15 |
Dowel Pin, 8X14 (94301-08140) |
Ed | €1.75 |
|
| 16 |
Limited Quantity Available Please Contact Us (95701-0602500) |
|
||
| 17 |
Bolt, Flange, 6X35 (95701-0603500) |
Ed | €1.22 |
|
