Honda CBF125MB (2011) E-08 OIL PUMP

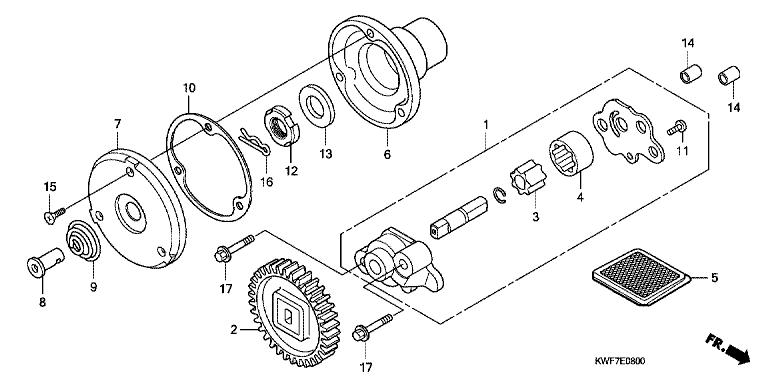

E-08 OIL PUMP
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Pump Assy., Oil (15100-KTE-910) |
E | €56.40 |
|
| 2 |
Gear Comp,Oil Pum (15130-KRM-840) |
E | €40.20 |
|
| 3 |
Rotor, Oil Pump Inner (15331-KTE-910) |
E | €2.53 |
|
| 4 |
Rotor, Oil Pump Outer (15332-KTE-910) |
E | €3.46 |
|
| 5 |
Screen, Oil Filter (15421-KSP-910) |
E | €8.81 |
|
| 6 |
Rotor, Oil Filter (15430-KSP-910) |
E | €25.15 |
|
| 7 |
Cap, Oil Filter Rotor (15436-KRM-840) |
E | €5.20 |
|
| 8 |
Through, Oil (15441-KCS-650) |
E | €11.24 |
|
| 9 |
Spring, Oil Through (15446-107-000) |
E | €2.68 |
|
| 10 |
Gasket, Oil Filter Cap (15459-KWK-900) |
E | €3.57 |
|
| 11 |
Limited Quantity Available Please Contact Us (90106-GHR-J20) |
|
||
| 11 |
Screw, Tapping, 4X8 (93901-34120) |
E | €0.28 |
|
| 12 |
Nut, Lock, 14Mm (90231-KRM-840) |
E | €3.89 |
|
| 13 |
Washer, 14.2X26X3 (90432-KPT-A00) |
E | €3.39 |
|
| 14 |
Dowel Pin, 8X14 (90702-KRM-840) |
E | €2.53 |
|
| 15 |
Screw, Oval, 5X12 (93700-050120A) |
E | €0.47 |
|
| 16 |
Pin, Lock, 8Mm (94251-08000) |
E | €0.92 |
|
| 17 |
Limited Quantity Available Please Contact Us (95702-0603500) |
|
||
| 17 |
Bolt, Flange, 6X35 (95701-0603500) |
E | €1.22 |
|
