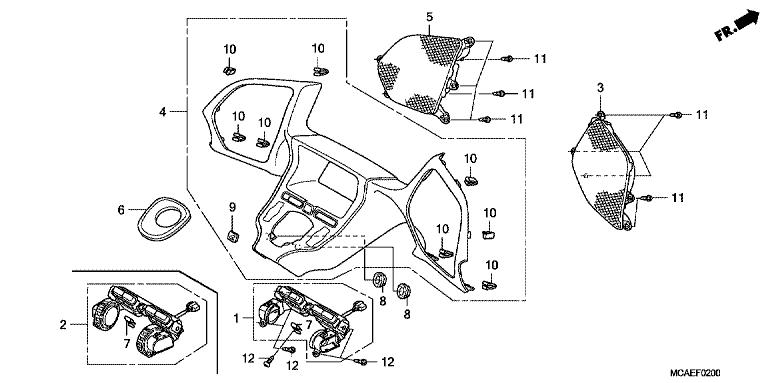

Honda GL1800C (2012) F-02 DASH / METER PANEL
F-02 DASH / METER PANEL
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 2 |
Switch Assy., Meter & Hea (35400-MCA-H01) |
E | €222.90 |
|
| 3 |
Cover Assy., R. Speaker * (64235-MCA-A60ZA) |
E | €67.81 |
|
| 4 |
Panel Assy., Meter *Nh312 (64240-MCA-S40ZA) |
E | €360.51 |
|
| 5 |
Cover Assy., L. Speaker * (64245-MCA-A60ZA) |
E | €67.81 |
|
| 6 |
Cover, Combination Switch (64251-MCA-A60) |
E | €25.68 |
|
| 7 |
Nut, Upper Cowl (66871-MV4-000) |
E | €2.32 |
|
| 8 |
Grommet, Air Cleaner Case (83551-GE2-000) |
E | €3.68 |
|
| 9 |
Emblem, Product (Uehara) (86150-KPG-902) |
E | €3.39 |
|
| 10 |
Clip, Snap Fitting (Po) ( (90666-SDA-A01) |
E | €4.13 |
|
| 11 |
Screw, Tapping, 4X10 (93903-24280) |
E | €0.68 |
|
| 12 |
Screw, Tapping, 4X16 (93903-24410) |
E | €0.68 |
|
