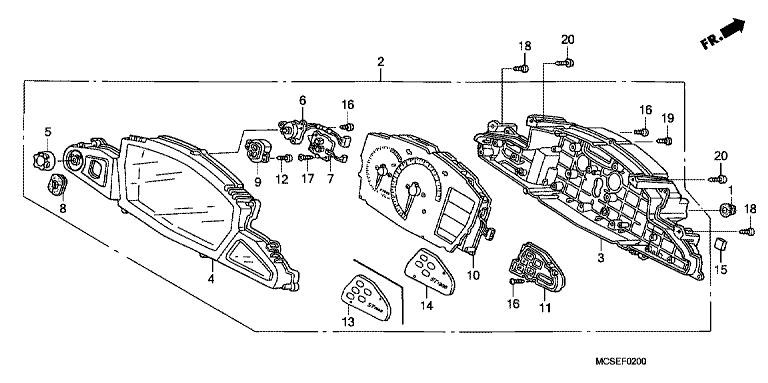

Honda ST1300AC (2012) F-02 DASH / METER
F-02 DASH / METER
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Rubber, Protector Packing (18293-GZ5-000) |
Ch | €2.42 |
|
| 2 |
Limited Quantity Available Please Contact Us (00000-000-000) |
|
||
| 3 |
Case Assy., Lower (37101-MCS-G01) |
Ch | €127.17 |
|
| 4 |
Case Assy., Upper (37102-MCS-G01) |
Ch | €139.32 |
|
| 5 |
Knob Assy. (37103-MCS-G01) |
Ch | €7.96 |
|
| 6 |
Switch Assy., Aiming (37104-MCS-G01) |
Ch | €44.34 |
|
| 7 |
Switch Assy., Three Way (37105-MCS-G01) |
Ch | €37.56 |
|
| 8 |
Rubber, Switch (37107-MCS-G01) |
Ch | €6.74 |
|
| 9 |
Plate( 3Sw) (37108-MCS-G01) |
Ch | €8.77 |
|
| 10 |
Limited Quantity Available Please Contact Us (00000-000-000) |
|
||
| 11 |
Indicator Assy. (With Abs (37120-MCS-B11) |
Ch | €159.41 |
|
| 12 |
Screw, Tapping, 3X14 (37214-KV7-671) |
Ch | €0.96 |
|
| 13 |
Limited Quantity Available Please Contact Us (00000-000-000) |
|
||
| 15 |
Rubber A, Side Cover (83605-MY5-G30) |
Ch | €1.93 |
|
| 16 |
Screw, Tapping, 3X14 (90101-MCV-000) |
Ch | €0.96 |
|
| 17 |
Screw, Tapping, 3X12 (93901-22320) |
Ch | €0.86 |
|
| 18 |
Screw, Tapping, 4X16 (93903-24410) |
Ch | €0.68 |
|
| 19 |
Screw, Tapping, 4X16 (93903-24420) |
Ch | €0.90 |
|
| 20 |
Screw, Tapping, 5X12 (93903-25210) |
Ch | €0.47 |
|
