Honda VFR1200XDC (2012) F-39 FRAME BODY

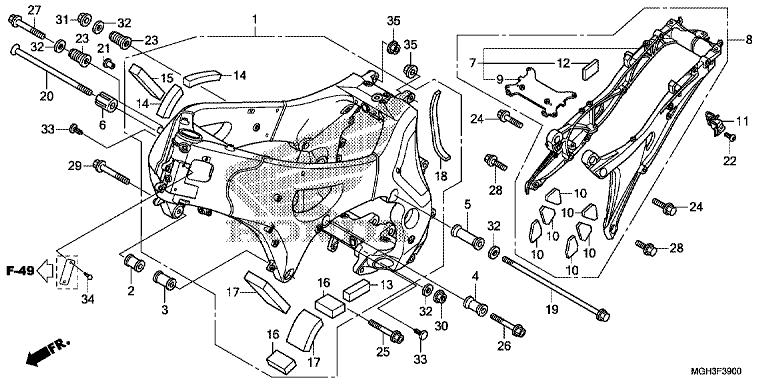

F-39 FRAME BODY

Ref.	Description	Area	Price
1	Discontinued (90559-ZW1-000)
2	Collar A, R. Engine Hange (50191-MGE-000)	E	€15.02
3	Collar A, L. Engine Hange (50192-MGE-000)	E	€18.83
4	Collar B, Engine Hanger (50193-MGE-000)	E	€21.76
5	Collar C, Engine Hanger (50194-MGE-000)	E	€36.46
6	Collar D, Engine Hanger (50195-MGE-000)	E	€52.40
8	Discontinued (90559-ZW1-000)
9	Plate, Center Cross (50203-MGE-010)	E	€78.12
10	Mat B, Seat Rail (50205-MGE-D00)	E	€5.31
11	Limited Quantity Available Please Contact Us (50206-MGH-640)
12	Mat F, Shock Absorber (64314-MCT-770)	E	€2.50
13	Mat, Taillight (64470-GEY-300)	E	€8.63
14	Urethane A, R. Heat Guard (83530-MGE-000)	E	€6.14
15	Urethane B, R. Heat Guard (83550-MGE-000)	E	€4.78
16	Urethane A, L. Heat Guard (83630-MGE-000)	E	€5.14
17	Urethane B, L. Heat Guard (83635-MGE-000)	E	€7.92
18	Urethane, R. Heat Guard (83640-MGE-700)	E	€3.81
19	Bolt, Flange, 12X344 (90101-MGE-000)	E	€44.51
20	Bolt, Special, 12X303 (90102-MGE-000)	E	€56.36
21	Nut, Cowl Setting, 5Mm (90111-KW3-003)	E	€2.85
22	Limited Quantity Available Please Contact Us (90118-MBV-000)
23	Bolt, Adjuster, 18X1.5X28 (90151-MGE-000)	E	€26.22
24	Bolt, Flange, 10X45 (90160-MGE-000)	E	€9.27
25	Bolt, Flange, 12X85 (90161-MGH-640)	E	€28.68
26	Bolt, Flange, 12X95 (90162-MGH-640)	E	€28.68
27	Bolt, Flange, 12X60 (90163-MGH-640)	E	€26.51
28	Bolt, Flange, 10X32 (90164-MGE-000)	E	€8.63
29	Bolt, Flange, 12X70 (90166-MGH-640)	E	€23.69
30	Nut, Flange, 12Mm (90371-MGE-000)	E	€4.03
31	Nut, Flange, 12Mm (90372-MGE-000)	E	€4.03
32	Washer, Plain, 12Mm (90559-ZW1-000)	E	€9.59
33	Clip, Brush (90656-MGH-641)	E	€3.92
34	Screw, Rivet, (90841-001-000)	E	€2.14
35	Nut, Flange, 10Mm (94050-10000)	E	€1.67
