Honda NC700SC (2012) E-20 THROTTLE BODY

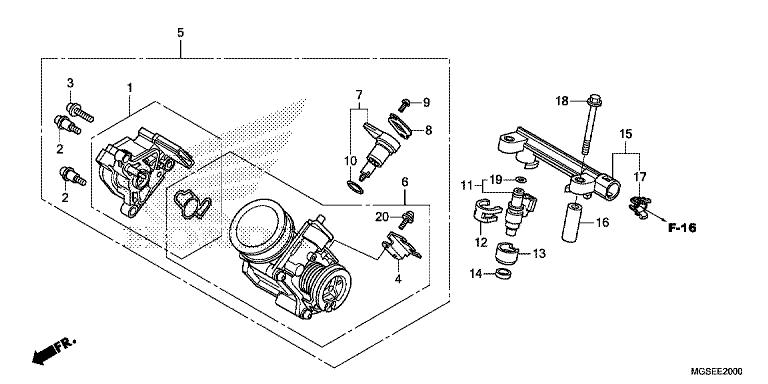

E-20 THROTTLE BODY
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Sensor Set (16060-MFR-671) |
2Ed | €286.32 |
|
| 2 |
Screw, Torx, 5X8.7 (16081-KYJ-901) |
2Ed | €3.04 |
|
| 3 |
Screw, Torx, 5X17 (16082-KYJ-901) |
2Ed | €3.04 |
|
| 4 |
Stay, Wire (16169-MGS-D31) |
2Ed | €30.68 |
|
| 5 |
Body Assy., Throttle (Gq3 (16400-MGS-D31) |
2Ed | €734.52 |
|
| 6 |
Body Set (16410-MGS-D31) |
2Ed | €390.59 |
|
| 7 |
Valve Set, Idle Air Contr (16430-MGS-D31) |
2Ed | €203.92 |
|
| 8 |
Plate, Idle Air Control V (16432-MFE-641) |
2Ed | €9.16 |
|
| 9 |
Screw, Torx (16433-HN8-A61) |
2Ed | €1.93 |
|
| 10 |
O-Ring, 17.8X1.9 (16435-HN8-A61) |
2Ed | €16.30 |
|
| 11 |
Injector Assy., Fuel (16450-MFA-D02) |
2Ed | €211.88 |
|
| 12 |
Clip, Injector (16451-MFL-000) |
2Ed | €5.78 |
|
| 13 |
Cover, Injector (16459-MGS-D30) |
2Ed | €3.14 |
|
| 14 |
Seal Ring, Injector (16472-MGS-D30) |
2Ed | €4.32 |
|
| 15 |
Pipe Comp., Fuel (16640-MGS-D31) |
2Ed | €68.84 |
|
| 16 |
Collar, Fuel Pipe (16647-MGS-D30) |
2Ed | €5.74 |
|
| 17 |
Retainer (17711-MGE-003) |
2Ed | €6.85 |
|
| 18 |
Bolt, Flange, 6X55 (90005-MGS-D30) |
2Ed | €3.92 |
|
| 19 |
O-Ring, 7.8X1.9 (91301-P7A-004) |
2Ed | €3.57 |
|
| 20 |
Screw-Washer, 5X12 (93892-0501208) |
2Ed | €1.03 |
|
