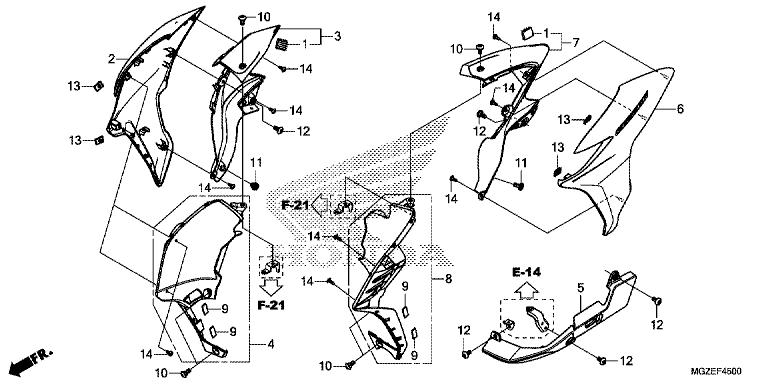

Honda CB500FAD (2013) F-45 MIDDLE COWL
F-45 MIDDLE COWL
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Fastener B, Dual Lock, 20 (64243-MEW-920) |
E | €2.78 |
|
| 2 |
Cowl Set, R. Middle (Wl) (64300-MGZ-D40ZC) |
E | €285.61 |
|
| 3 |
Cowl Assy., R. Inner (64305-MGZ-J40) |
E | €176.36 |
|
| 4 |
Panel Assy., R. Inner (64306-MGZ-J40) |
E | €97.45 |
|
| 5 |
Cowl, L. Under (64320-MGZ-J41) |
E | €52.00 |
|
| 6 |
Cowl Set, L. Middle (Wl) (64400-MGZ-D40ZC) |
E | €285.61 |
|
| 7 |
Cowl Assy., L. Inner (64405-MGZ-J40) |
E | €176.36 |
|
| 8 |
Panel Assy., L. Inner (64406-MGZ-J40) |
E | €97.45 |
|
| 9 |
Cushion, Number Plate (84703-KC2-960) |
E | €1.32 |
|
| 10 |
Screw, Special, 6X14 (90115-MGZ-J00) |
E | €3.92 |
|
| 11 |
Screw, Special, 6X16 (90116-MFL-D20) |
E | €4.49 |
|
| 12 |
Screw, Pan, 6X14 (90133-KPP-T00) |
E | €1.99 |
|
| 13 |
Nut, Spring, 4Mm (90302-KWW-A00) |
E | €2.35 |
|
| 14 |
Screw, Tapping, 4X12 (93903-24380) |
E | €0.47 |
|
