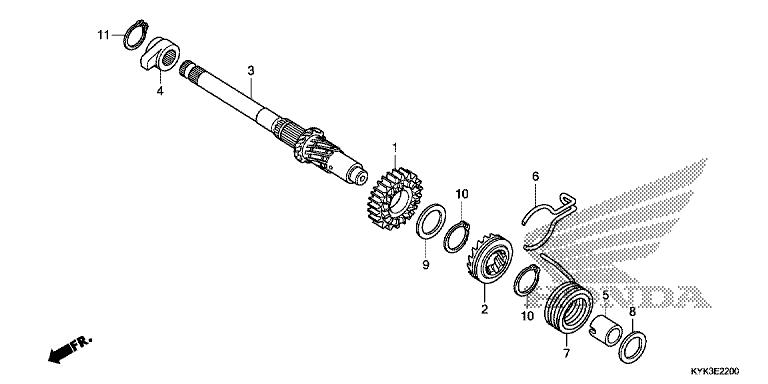

Honda CRF110FD (2013) E-22 KICK STARTER SPINDLE
E-22 KICK STARTER SPINDLE
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Pinion, Kick Starter (23T (28211-KWB-600) |
Ed | €14.66 |
|
| 2 |
Ratchet, Starter Drive (28221-KWW-740) |
Ed | €36.10 |
|
| 3 |
Spindle, Kick Starter (28251-KWB-600) |
Ed | €32.31 |
|
| 4 |
Retainer, Kick Spindle (28262-KWB-600) |
Ed | €14.42 |
|
| 5 |
Collar, Kick Spring (28265-KWB-600) |
Ed | €4.43 |
|
| 6 |
Spring, Friction Starter (28271-KWB-600) |
Ed | €1.71 |
|
| 6 |
Spring, Friction Starter (28271-KYY-900) |
Ed | €1.71 |
|
| 7 |
Spring, Kick Return (28281-KWB-600) |
Ed | €4.07 |
|
| 8 |
Washer, Special, 14Mm (90451-KGH-900) |
Ed | €3.53 |
|
| 9 |
Washer, Thrust, 20Mm (90454-107-000) |
Ed | €1.93 |
|
| 10 |
Set Ring, 20Mm (90605-200-000) |
Ed | €2.82 |
|
| 10 |
Set Ring, 20Mm (90605-GFP-900) |
Ed | €5.24 |
|
| 10 |
Set Ring, 20Mm (90605-KYY-900) |
Ed | €5.24 |
|
| 11 |
Circlip, External, 16Mm (94510-16000) |
Ed | €0.86 |
|
