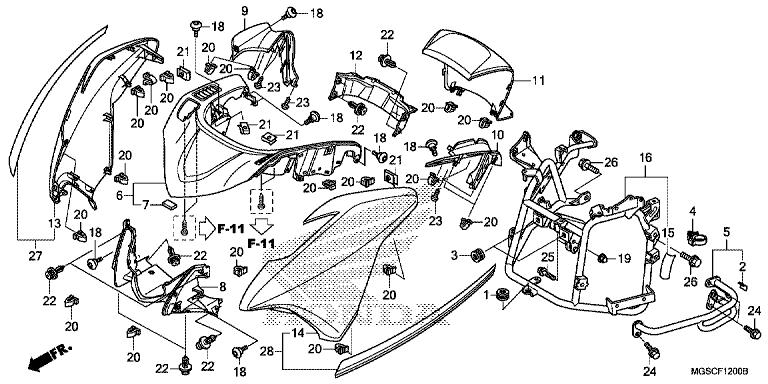

Honda NC700DD (2013) F-12 FRONT COWL

F-12 FRONT COWL

Ref.	Description	Area	Price
1	Rubber, Air Cleaner Case (17245-107-010)	E	€5.20
2	Tape, Fuel Tank (25X25) (17528-MFY-A00)	E	€3.60
3	Rubber, Protector (18316-KFT-620)	E	€3.17
4	Clip, Return Hose (53781-SE0-952)	E	€4.00
5	Guard, Abs Modulator (57150-MGS-D70)	E	€83.58
6	Garnish Comp., Fr. *R256R (64110-MGS-D70ZA)	E	€141.50
6	Garnish Comp., Fr. Nh1 (64110-MGS-D70ZB)	E	€141.50
7	Mat A, Garnish (64111-MGS-D70)	E	€2.68
8	Cover, Air Intake (64120-MGS-D70)	E	€47.29
9	Cover, R. Inner Nh1 (64130-MGS-D70ZB)	E	€31.00
9	Cover, R. Inner R256R (64130-MGS-D70ZA)	E	€31.00
10	Cover, L. Inner Nh1 (64140-MGS-D70ZB)	E	€31.00
10	Cover, L. Inner R256R (64140-MGS-D70ZA)	E	€31.00
11	Cover Comp., Inner (Wl) * (64150-MGS-D70ZA)	E	€96.67
12	Cover, Inner Center (64160-MGS-D70)	E	€18.44
13	Cowl, R. Fr. Side *R151Cu (64310-MGS-D70ZA)	E	€883.30
13	Cowl, R. Fr. Side *Nha64P (64310-MGS-D70ZD)	E	€883.30
13	Cowl, R. Fr. Side *Nha66P (64310-MGS-D70ZC)	E	€883.30
14	Cowl, L. Fr. Side *R151Cu (64360-MGS-D70ZA)	E	€883.30
14	Cowl, L. Fr. Side *Nha66P (64360-MGS-D70ZC)	E	€883.30
14	Cowl, L. Fr. Side *Nha64P (64360-MGS-D70ZD)	E	€883.30
15	Tape, Cover (64382-MM5-300)	E	€2.71
16	Stay Comp., Fr. Cowl (64501-MGS-D71)	E	€513.05
18	Screw, Special, 5X11 (90114-MGE-000)	E	€5.74
19	Nut, Flange Cap, 8Mm (90161-MM8-000)	E	€4.49
20	Clip, Snap Fitting (Po) ( (90666-SDA-A01)	E	€4.13
21	Nut, Clip, 5Mm (90677-KAN-T00)	E	€3.60
22	Clip, Body (90683-MBW-003)	E	€3.25
23	Screw, Tapping, 4X10 (93903-24210)	E	€0.54
24	Bolt, Flange, 8X14 (95701-0801400)	E	€1.50
25	Bolt, Flange, 8X25 (95701-0802507)	E	€1.61
26	Bolt, Flange, 8X18 (95801-0801800)	E	€1.62
