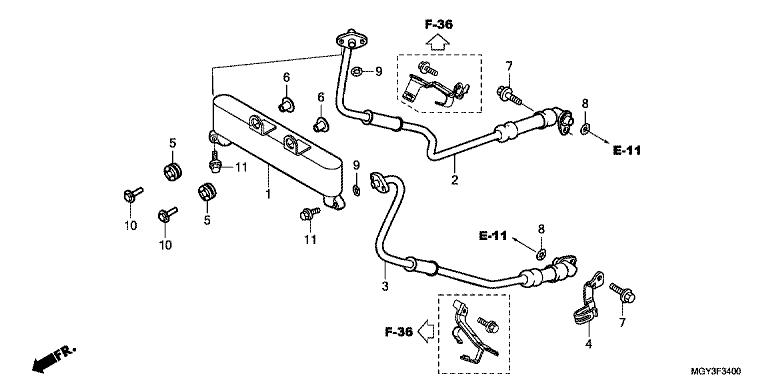

Honda VFR800XD (2013) F-34 OIL COOLER
F-34 OIL COOLER
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Cooler Comp., Oil (15600-MGY-641) |
E | €590.13 |
|
| 2 |
Pipe Comp., R. Oil Hose (15650-MGY-640) |
E | €223.48 |
|
| 3 |
Discontinued (19051-KA3-830) |
|
||
| 4 |
Clamper B, Tube (15690-MCW-D00) |
E | €9.99 |
|
| 5 |
Rubber, Radiator Mounting (19051-KA3-830) |
E | €4.53 |
|
| 6 |
Collar, Radiator Mounting (19052-MGH-640) |
E | €4.43 |
|
| 7 |
Bolt, Flange, 8X22 (90103-MJ1-010) |
E | €2.82 |
|
| 8 |
O-Ring, 11.1X3.5 (91255-MJ1-000) |
E | €3.39 |
|
| 9 |
O-Ring, 9.6X2.6 (Arai) (91309-ML7-003) |
E | €2.85 |
|
| 10 |
Bolt-Washer, 6X25 (93404-0602508) |
E | €1.22 |
|
| 11 |
Bolt, Flange, 6X18 (96001-0601804) |
E | €1.62 |
|
