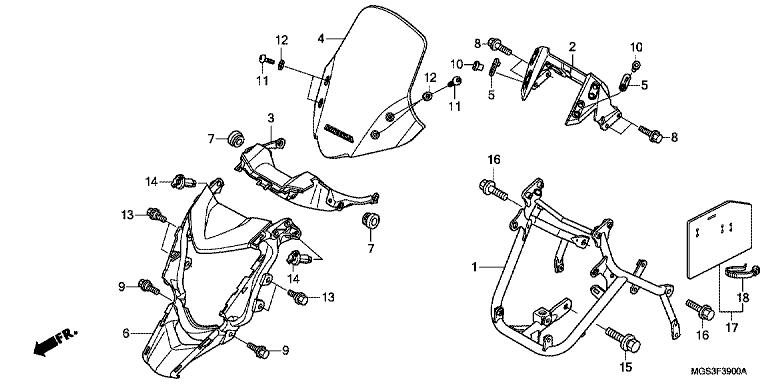

Honda NC700XAD (2013) F-39 FRONT COWL
F-39 FRONT COWL
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Stay Comp., Fr. Cowl (61310-MGS-D30) |
Ed | €513.05 |
|
| 2 |
Stay, Meter *Nh389M* (61315-MGS-D30ZA) |
Ed | €122.95 |
|
| 3 |
Cover, Inner Upper *Nh1* (61317-MGS-D30ZA) |
Ed | €24.58 |
|
| 4 |
Windscreen Set (Wl) *Type (64100-MGS-D30ZA) |
Ed | €479.91 |
|
| 5 |
Adapter, Screen (64202-MGS-D30) |
Ed | €2.75 |
|
| 6 |
Cowl, Fr. Center *Nh1* (64260-MGS-D30ZA) |
Ed | €61.64 |
|
| 7 |
Grommet, Side Cover (83501-MG7-000) |
Ed | €2.50 |
|
| 8 |
Bolt, Flange, 6X16 (Nshf) (90004-GHB-630) |
Ed | €2.14 |
|
| 9 |
Bolt, Flange, 6Mm (90111-162-000) |
Ed | €3.64 |
|
| 10 |
Nut, Cowl Setting, 5Mm (90111-KW3-003) |
Ed | €2.85 |
|
| 11 |
Screw, Pan, 5X15 (90112-MGS-D30) |
Ed | €4.92 |
|
| 12 |
Washer, Thrust, 5Mm (90504-964-000) |
Ed | €1.61 |
|
| 13 |
Bolt, Flange, 5X9 (90508-GC8-000) |
Ed | €3.00 |
|
| 14 |
Clip, Trim (90683-GAZ-003) |
Ed | €2.78 |
|
| 15 |
Bolt-Washer, 10X25 (93404-1002508) |
Ed | €0.90 |
|
| 16 |
Bolt, Flange, 8X18 (95701-0801808) |
Ed | €1.54 |
|
