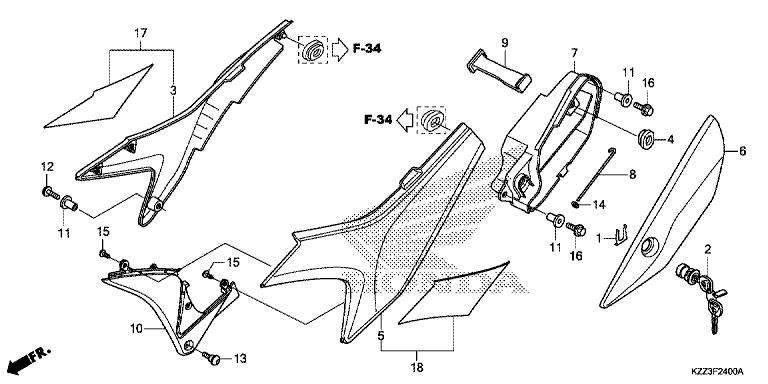

Honda CRF250LD (2013) F-24 SIDE COVER
F-24 SIDE COVER
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Spring, Lock Key Setting (37222-MCS-G00) |
E | €7.28 |
|
| 2 |
Lock Assy., Pocket Lid (77233-MBL-611) |
E | €29.08 |
|
| 3 |
Cover, R. Side *Nh196* (83501-KZZ-900ZC) |
E | €88.57 |
|
| 4 |
Grommet, Air Cleaner Case (83551-GE2-000) |
E | €3.68 |
|
| 5 |
Cover, L. Side *Nh196* (83601-KZZ-900ZC) |
E | €88.57 |
|
| 6 |
Cover, Tool Box *Nh196* (83602-KZZ-900ZB) |
E | €41.94 |
|
| 7 |
Box, Tool (83603-KZZ-900) |
E | €77.65 |
|
| 8 |
Hinge, Tool Box (83604-KZZ-900) |
E | €4.60 |
|
| 9 |
Band, Tool (83607-KZZ-900) |
E | €6.85 |
|
| 10 |
Cover, L. Side Lower (83701-KZZ-900) |
E | €27.04 |
|
| 11 |
Collar, Side Cover (83905-KZZ-900) |
E | €7.56 |
|
| 12 |
Screw, Pan, 6X18 (90132-KZZ-900) |
E | €2.74 |
|
| 13 |
Screw, Pan, 6X14 (90133-KPP-T00) |
E | €1.99 |
|
| 14 |
Nut, Push, 2.6 (90310-ZB7-701) |
E | €3.39 |
|
| 15 |
Screw, Tapping, 4X10 (93903-24280) |
E | €0.68 |
|
| 16 |
Bolt, Flange, 6X18 (96001-0601800) |
E | €1.39 |
|
