Honda CBF125MD (2013) E-09 LEFT CRANKCASE COVER

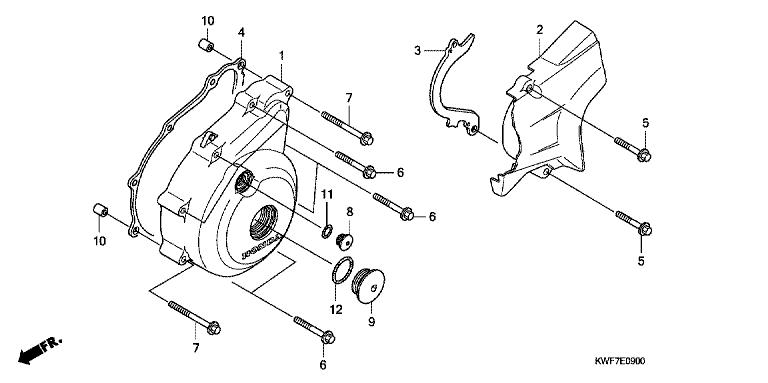

E-09 LEFT CRANKCASE COVER
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Discontinued (91305-KRM-840) |
|
||
| 2 |
Discontinued (91305-KRM-840) |
|
||
| 3 |
Guide, Drive Chain (11365-KWF-940) |
E | €9.03 |
|
| 4 |
Gasket, L. Cover (11395-KYA-C00) |
E | €8.35 |
|
| 5 |
Bolt, Flange, 6X30 (90013-KWF-940) |
E | €2.29 |
|
| 6 |
Bolt, Flange, 6X35 (90014-KWF-940) |
E | €2.29 |
|
| 7 |
Bolt, Flange, 6X45 (90015-KWF-940) |
E | €2.29 |
|
| 8 |
Cap, 14Mm (90084-MN8-010) |
E | €11.13 |
|
| 9 |
Discontinued (91305-KRM-840) |
|
||
| 10 |
Dowel Pin, 8X14 (90702-KRM-840) |
E | €2.53 |
|
| 11 |
O-Ring, 13.8X2.5 (91303-KRM-840) |
E | €1.32 |
|
| 12 |
O-Ring, 31.7X2.4 (91305-KRM-840) |
E | €1.82 |
|
