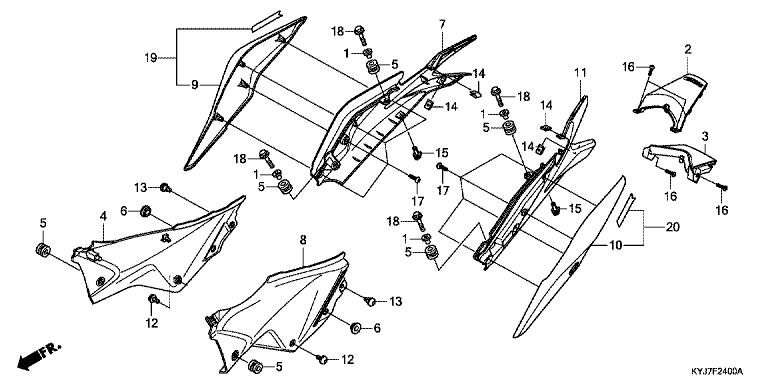

Honda CBR250RD (2013) F-24 SIDE COVER / REAR COWL
F-24 SIDE COVER / REAR COWL
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Collar, Air Cleaner Mount (17232-KYJ-900) |
2E | €5.20 |
|
| 2 |
Cowl Set, Rr. Center Uppe (83450-KPP-T00ZA) |
2E | €12.31 |
|
| 3 |
Cowl, Rr. Center Lower (83501-KPP-T00) |
2E | €9.52 |
|
| 4 |
Cover, R. Side (83510-KYJ-900) |
2E | €57.22 |
|
| 5 |
Rubber, Side Cover (83545-KCJ-690) |
2E | €1.50 |
|
| 6 |
Grommet, Air Cleaner Case (83551-GE2-000) |
2E | €3.68 |
|
| 7 |
Cowl, R. Rr. (83600-KPP-T00) |
2E | €53.19 |
|
| 8 |
Cover, L. Side (83610-KYJ-900) |
2E | €57.22 |
|
| 9 |
Discontinued (93903-25280) |
|
||
| 10 |
Discontinued (93903-25280) |
|
||
| 11 |
Cowl, L. Rr. (83700-KPP-T00) |
2E | €53.19 |
|
| 12 |
Screw, Pan, 6X10 (90132-KPP-T00) |
2E | €1.99 |
|
| 13 |
Screw, Pan, 6X14 (90133-KPP-T00) |
2E | €1.99 |
|
| 14 |
Nut, Clip, 4Mm (90344-KTE-910) |
2E | €3.81 |
|
| 15 |
Clip, Trim (90683-GAZ-003) |
2E | €2.78 |
|
| 16 |
Screw, Tapping, 4X12 (93903-24380) |
2E | €0.47 |
|
| 17 |
Screw, Tapping, 5X12 (93903-25280) |
2E | €0.47 |
|
| 18 |
Bolt, Flange, 6X20 (95701-0602008) |
2E | €1.03 |
|
