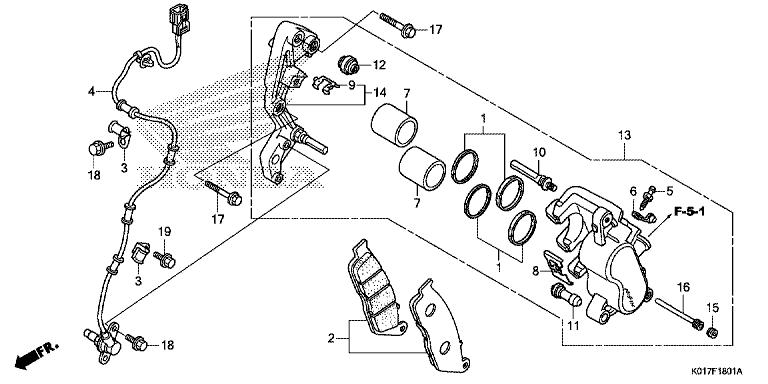

Honda SH125ADD (2013) F-18-01 FRONT BRAKE CALIPER ( SH125A,AD / SH150A,AD)
F-18-01 FRONT BRAKE CALIPER ( SH125A,AD / SH150A,AD)
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Seal Set, Piston (06451-GE2-405) |
E | €8.77 |
|
| 2 |
Pad Set,Fr (06455-K01-D12) |
E | €55.65 |
|
| 3 |
Guide, Sensor Cord (38515-KSV-J40) |
E | €8.63 |
|
| 4 |
Sensor, Fr. Wheel Speed (38520-K01-D11) |
E | €159.76 |
|
| 5 |
Screw, Bleeder (Nissin) (43352-568-003) |
E | €5.85 |
|
| 6 |
Cap, Bleeder (43353-461-771) |
E | €4.96 |
|
| 7 |
Piston (45107-K01-D11) |
E | €29.32 |
|
| 8 |
Spring, Pad (Nissin) (45108-ML7-922) |
E | €7.32 |
|
| 9 |
Retainer (45112-ML7-921) |
E | €5.99 |
|
| 10 |
Bolt A, Pin (45131-ML7-921) |
E | €13.35 |
|
| 11 |
Boot, Pin Bush (Nissin) (45132-166-016) |
E | €3.64 |
|
| 12 |
Boot B (45133-MA3-006) |
E | €4.96 |
|
| 13 |
Caliper Sub Assy., L. Fr. (45150-K01-D11) |
E | €550.14 |
|
| 14 |
Bracket Sub Assy., L. Fr. (45190-K01-D11) |
E | €107.87 |
|
| 15 |
Plug, Pin (45203-MG3-016) |
E | €4.46 |
|
| 16 |
Pin, Hanger (45215-ML7-922) |
E | €7.64 |
|
| 17 |
Bolt, Flange, 8X32 (90131-K01-900) |
E | €5.54 |
|
| 18 |
Bolt, Flange, 6X14 (96001-0601407) |
E | €1.22 |
|
| 19 |
Bolt, Flange, 6X10 (96001-0601007) |
E | €1.14 |
|
