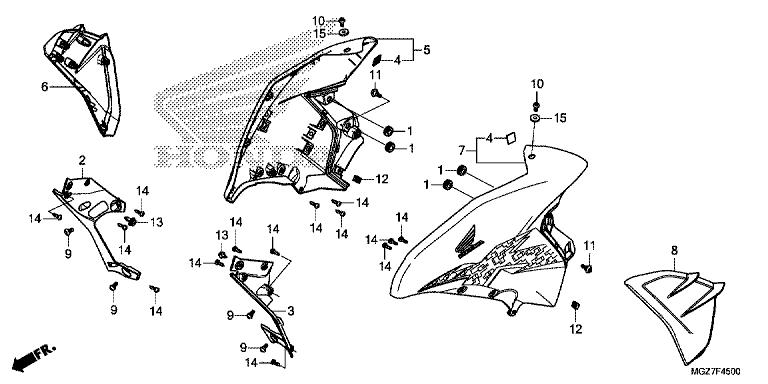

Honda CB500XE (2014) F-45 MIDDLE COWL
F-45 MIDDLE COWL
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Grommet A, Rr. Cover (8X1 (11344-MB0-000) |
E | €3.39 |
|
| 2 |
Shroud, R. Inner (64230-MGZ-J80) |
E | €19.73 |
|
| 3 |
Shroud, L. Inner (64240-MGZ-J80) |
E | €19.73 |
|
| 4 |
Fastener B, Dual Lock, 20 (64243-MEW-920) |
E | €2.78 |
|
| 5 |
Discontinued (94103-06700) |
|
||
| 6 |
Shroud, R. Radiator (64335-MGZ-J80) |
E | €85.53 |
|
| 7 |
Discontinued (94103-06700) |
|
||
| 8 |
Shroud, L. Radiator (64435-MGZ-J80) |
E | €85.53 |
|
| 9 |
Screw, Special, 6X14 (90115-MGZ-J00) |
E | €3.92 |
|
| 10 |
Screw, Pan, 6X10 (90132-KPP-T00) |
E | €1.99 |
|
| 11 |
Screw, Pan, 6X14 (90133-KPP-T00) |
E | €1.99 |
|
| 12 |
Nut, Clip, 5Mm (90677-KAN-T00) |
E | €3.60 |
|
| 13 |
Clip, Body Cover (90683-GR1-003) |
E | €2.35 |
|
| 14 |
Screw, Tapping, 4X12 (93903-24380) |
E | €0.47 |
|
| 15 |
Washer, Plain, 6Mm (94103-06700) |
E | €0.90 |
|
