Honda NSC110MPDE (2014) F-22-10 REAR WHEEL

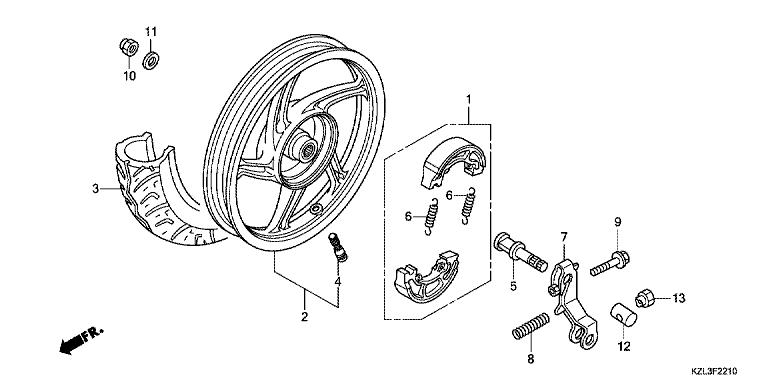

F-22-10 REAR WHEEL
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Shoe Set, Brake (Ask) (06430-KZL-930) |
E | €43.44 |
|
| 2 |
Wheel Sub Assy., Rr. *Nh1 (42650-KZL-930ZC) |
E | €249.52 |
|
| 3 |
Tire, Rr. (Cheng Shin) (9 (42711-KZL-931) |
E | €258.00 |
|
| 4 |
Valve, Rim (Cheng Shin) (42753-KBN-902) |
E | €13.76 |
|
| 5 |
Cam, Rr. Brake (43141-KWN-930) |
E | €32.03 |
|
| 6 |
Spring, Brake Shoe (43151-329-000) |
E | €3.28 |
|
| 7 |
Discontinued (42650-KZL-930ZC) |
|
||
| 8 |
Spring, Rr. Brake Arm (43472-KVB-900) |
E | €3.53 |
|
| 9 |
Bolt, Flange, 6X32 (90112-KVB-900) |
E | €46.52 |
|
| 10 |
Nut, U, 16Mm (90305-GW2-711) |
E | €11.70 |
|
| 11 |
Washer, 16Mm (90501-KBN-900) |
E | €7.02 |
|
| 12 |
Joint B, Brake Arm (95015-32001) |
E | €1.22 |
|
| 13 |
Nut B, Brake Rod Adjustin (95015-42000) |
E | €3.75 |
|
