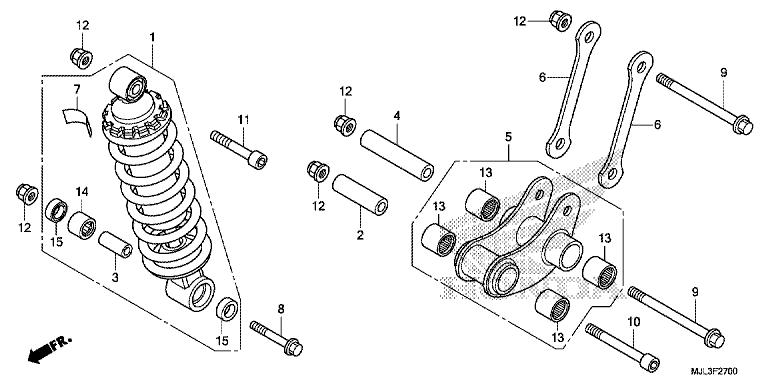

Honda NC750XAE (2014) F-27 REAR SHOCKS / REAR CUSHION
F-27 REAR SHOCKS / REAR CUSHION
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Cushion Assy., Rr. (Showa (52400-MGS-D31) |
Ed | €745.61 |
|
| 2 |
Collar A, Cushion Arm (52462-MGS-D10) |
Ed | €16.45 |
|
| 3 |
Collar, Cushion Connectin (52463-MAL-G00) |
Ed | €8.28 |
|
| 4 |
Collar B, Cushion Arm (52463-MGS-D10) |
Ed | €19.22 |
|
| 5 |
Arm Sub Assy., Cushion (52465-MGS-D30) |
Ed | €240.70 |
|
| 6 |
Plate, Cushion Connecting (52471-MGS-D30) |
Ed | €26.79 |
|
| 7 |
Label, Rr. Damper (Pictog (87516-MCA-G60) |
Ed | €5.95 |
|
| 8 |
Bolt, Flange, 10X62 (90101-MBB-000) |
Ed | €3.04 |
|
| 9 |
Bolt, Flange, 10X115 (90102-MGS-D30) |
Ed | €9.27 |
|
| 10 |
Bolt, Socket, 10X88 (90110-MGS-D30) |
Ed | €15.19 |
|
| 11 |
Bolt, Socket, 10X52 (90111-MGS-D30) |
Ed | €11.56 |
|
| 12 |
Nut, U, Flange. 10Mm (90304-GBL-003) |
Ed | €4.21 |
|
| 13 |
Bearing, Needle, 17X24X30 (91052-MGS-D31) |
Ed | €15.52 |
|
| 14 |
Bearing, Needle (Koyo) (91071-KV3-005) |
Ed | €22.90 |
|
| 15 |
Dust Seal, 17X24X5 (Arai) (91262-KV3-831) |
Ed | €5.78 |
|
