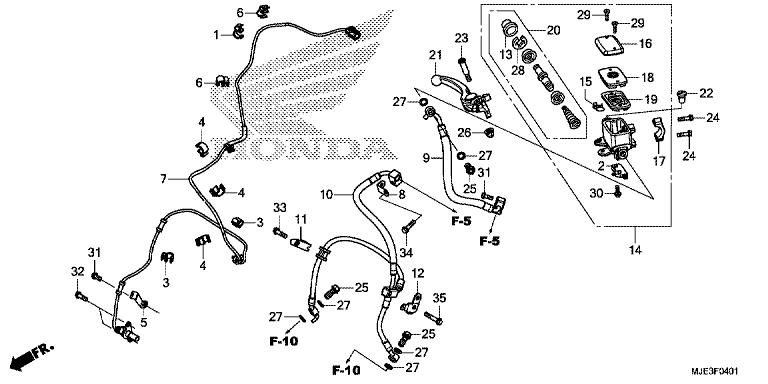

Honda CBR650FAE (2014) F-04-01 FR. BRAKE MASTER CYLINDER (CBR650FA)

F-04-01 FR. BRAKE MASTER CYLINDER (CBR650FA)
Ref. Description Area Price Quantity
1 Clamp, Pipe (11152-KS4-003)
 2Ed €4.17
2 Switch Assy., Fr. Stop (35340-MGS-D31)
 2Ed €24.58
3 Clamp, Abs Cord (D8.5) (38516-MGE-003)
 2Ed €5.89
4 Clamp, Abs Cord (D12) (38517-MGE-003)
 2Ed €5.18
5 Clamper, Sensor Cord (38517-MGS-D80)
 2Ed €6.42
6 Clamp, Abs Cord (38517-MJE-D10)
 2Ed €4.21
7 Discontinued
(90545-300-000)
8 Stay, Sensor Cord (38550-MJE-D10)
 2Ed €4.17
9 Hose Comp. A, Fr. Brake ( (45125-MJE-D11)
 2Ed €114.50
10 Discontinued
(90545-300-000)
11 Clamper A, Fr. Brake Hose (45156-MJE-D10)
 2Ed €5.39
12 Stay, Fr. Brake Hose (45158-MJE-D10)
 2Ed €5.39
13 Boot Comp. (45504-410-003)
 2Ed €9.38
14 Cylinder Sub Assy., Fr. M (45510-MJE-D01)
 2Ed €283.93
15 Protector (45512-MA6-006)
 2Ed €3.60
16 Cap, Master Cylinder (Nis (45513-MM5-016)
 2Ed €28.11
17 Holder, Master Cylinder (45517-166-006)
 2Ed €13.44
18 Plate, Diaphragm (45518-MM5-006)
 2Ed €11.56
19 Diaphragm (45520-MM5-006)
 2Ed €14.87
20 Cylinder Set, Master (45530-471-831)
 2Ed €64.06
21 Lever Assy., R. Handle (53170-MJE-D01)
 2Ed €97.49
22 Plug, Handle Lever Bracke (53174-116-670)
 2Ed €2.29
23 Bolt, Handle Lever Pivot (90114-MA5-671)
 2Ed €8.52
24 Bolt, Flange, 6X22 (90131-MJE-D00)
 2Ed €5.14
25 Bolt, Oil, 10X22 (Saga) (90145-MS9-612)
 2Ed €9.63
26 Nut, Cap, 6Mm (90202-KCW-870)
 2Ed €3.57
27 Washer, Oil Bolt (90545-300-000)
 2Ed €2.53
28 Circlip (90651-MA5-671)
 2Ed €2.25
29 Screw, Flat, 4X12 (93600-040120G)
 2Ed €0.64
30 Screw-Washer, 4X12 (93893-0401207)
 2Ed €0.64
31 Bolt, Flange, 6X12 (96001-0601207)
 2Ed €1.39
32 Bolt, Flange, 6X16 (96001-0601600)
 2Ed €1.28
33 Bolt, Flange, 6X20 (96001-0602007)
 2Ed €1.28
34 Bolt, Flange, 6X25 (96001-0602507)
 2Ed €1.39
35 Bolt, Flange, 6X35 (96001-0603507)
 2Ed €1.61
