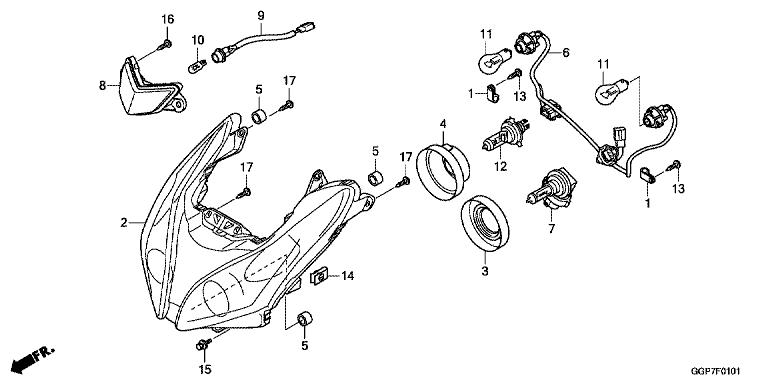

Honda NSC50T2E (2014) F-01-01 HEADLIGHT (NSC502WH / T2)
F-01-01 HEADLIGHT (NSC502WH / T2)
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Clamp, Cord (32920-MN5-003) |
E | €3.14 |
|
| 2 |
Unit,Head Light (33110-GGP-D02) |
E | €114.86 |
|
| 3 |
Cover, Rubber (33112-GGP-D01) |
E | €18.55 |
|
| 4 |
Cover, Rubber (33112-KZL-951) |
E | €18.55 |
|
| 5 |
Pipe, Cp (33113-MEE-D01) |
E | €4.43 |
|
| 6 |
Socket Comp., Headlight (33120-GGP-D01) |
E | €93.38 |
|
| 7 |
Bulb, Fog Light (H8) (12V (33165-S5A-J01) |
E | €25.51 |
|
| 8 |
Light Unit, Position (33181-KZL-951) |
E | €26.47 |
|
| 9 |
Socket Comp., Position Li (33182-KZL-951) |
E | €22.36 |
|
| 10 |
Bulb, Position Light (12V (33301-KVJ-911) |
E | €8.35 |
|
| 11 |
Bulb, Py21W (34906-S6D-G01HE) |
E | €3.39 |
|
| 12 |
Bulb, Headlight (Hs1) (12 (34901-KFV-671) |
E | €41.73 |
|
| 13 |
Screw, Tapping, 4X14 (90101-KZL-950) |
E | €4.35 |
|
| 14 |
Nut, Spring, 4Mm (90303-GGL-J01) |
E | €3.53 |
|
| 15 |
Bolt-Washer, 6X20 (93404-0602007) |
E | €1.14 |
|
| 16 |
Screw, Tapping, 4X12 (93903-24310) |
E | €0.57 |
|
| 17 |
Screw, Tapping, 5X16 (93903-35320) |
E | €0.68 |
|
