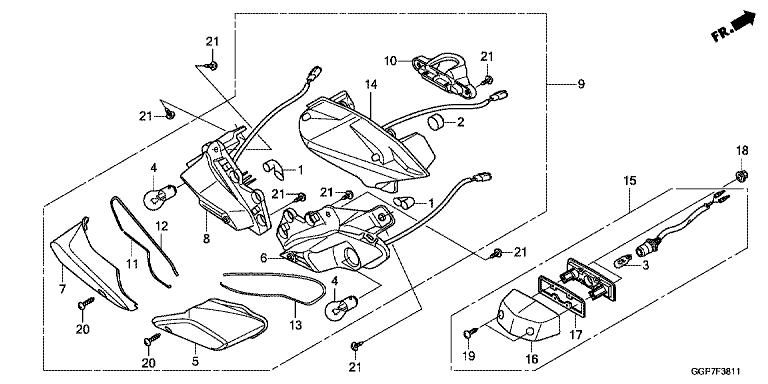

Honda NSC50T2E (2014) F-38-11 REAR COMBINATION LIGHT (NSC502WH / T2)
F-38-11 REAR COMBINATION LIGHT (NSC502WH / T2)
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Pipe, Cp (33113-MAT-611) |
E | €3.85 |
|
| 2 |
Pipe, Cp (33113-MBW-D21) |
E | €3.85 |
|
| 3 |
Bulb, Position Light (12V (33301-KVJ-911) |
E | €8.35 |
|
| 4 |
Bulb, Py21W (34906-S6D-G01HE) |
E | €3.39 |
|
| 5 |
Lens, R. Winker (33601-KZL-951) |
E | €8.95 |
|
| 6 |
Base Comp., R. Winker (33610-GGP-D01) |
E | €43.63 |
|
| 7 |
Lens, L. Winker (33651-KZL-951) |
E | €8.95 |
|
| 8 |
Base Comp., L. Winker (33660-GGP-D01) |
E | €43.63 |
|
| 9 |
Light Assy,Rear C (33700-GGP-D02) |
E | €117.39 |
|
| 10 |
Bracket (33702-KZL-951) |
E | €4.60 |
|
| 11 |
Packing, Seal (1) (33703-KZL-951) |
E | €2.46 |
|
| 12 |
Packing, Seal (2) (33704-KZL-951) |
E | €2.46 |
|
| 13 |
Packing, Seal (3) (33705-KZL-951) |
E | €1.78 |
|
| 14 |
Unit,Rr Comb (33710-GGP-D02) |
E | €159.73 |
|
| 15 |
Light Assy., License (12V (33720-GGP-D01) |
E | €109.86 |
|
| 16 |
Cover Comp., License (33721-KZL-951) |
E | €12.67 |
|
| 17 |
Packing, Lens (33729-KZL-951) |
E | €2.78 |
|
| 18 |
Nut,Spg M5 (90302-GFM-890) |
E | €3.39 |
|
| 19 |
Screw, Tapping, 4X12 (93901-24380) |
E | €0.47 |
|
| 20 |
Screw, Tapping, 4X16 (93901-34420) |
E | €0.68 |
|
| 21 |
Screw, Tapping, 5X16 (93903-35320) |
E | €0.68 |
|
