Honda SH125ASE (2014) F-23 SWINGARM

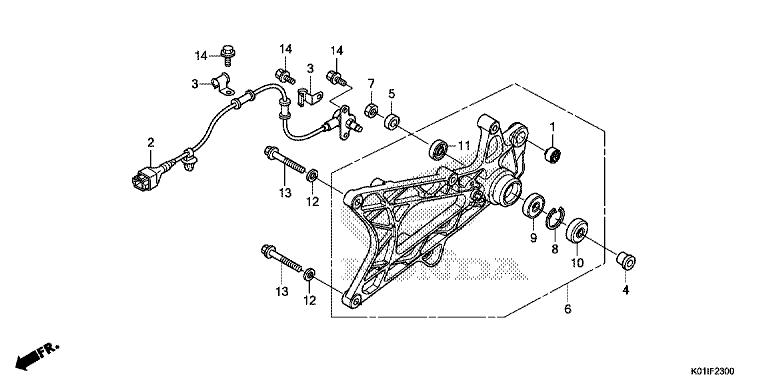

F-23 SWINGARM
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Bush, Rr. Cushion Under R (11203-GC7-300) |
E | €6.42 |
|
| 1 |
Bush, Rr. Cushion Under R (11203-KVB-901) |
E | €7.64 |
|
| 2 |
Sensor, Rr. Wheel Speed (38510-K01-D11) |
E | €136.94 |
|
| 3 |
Guide, Sensor Cord (38515-KSV-J40) |
E | €8.63 |
|
| 4 |
Collar, Rr. Wheel Side (42311-KWN-900) |
E | €13.91 |
|
| 5 |
Collar B, Rr. Wheel Side (42312-KVG-900) |
E | €4.07 |
|
| 6 |
Discontinued (94101-10000) |
|
||
| 7 |
Nut, U, 16Mm (90305-KWN-701) |
E | €11.24 |
|
| 8 |
Circlip, Internal, 40Mm (90651-KZR-601) |
E | €5.39 |
|
| 8 |
Circlip, Internal, 40Mm (94520-40000) |
E | €2.82 |
|
| 9 |
Bearing, Radial Ball, 620 (91053-MV1-003) |
E | €18.59 |
|
| 10 |
Dust Seal, 25X40X5 (91252-KZR-601) |
E | €9.74 |
|
| 11 |
Dust Seal, 25X35X6 (91253-KZR-601) |
E | €9.74 |
|
| 12 |
Washer, Plain, 10Mm (94101-10000) |
E | €0.68 |
|
| 13 |
Bolt, Flange, 10X40 (95701-1004000) |
E | €2.42 |
|
| 14 |
Bolt, Flange, 6X14 (96001-0601407) |
E | €1.22 |
|
