Honda SH125ADE (2014) E-13 LEFT SIDE COVER

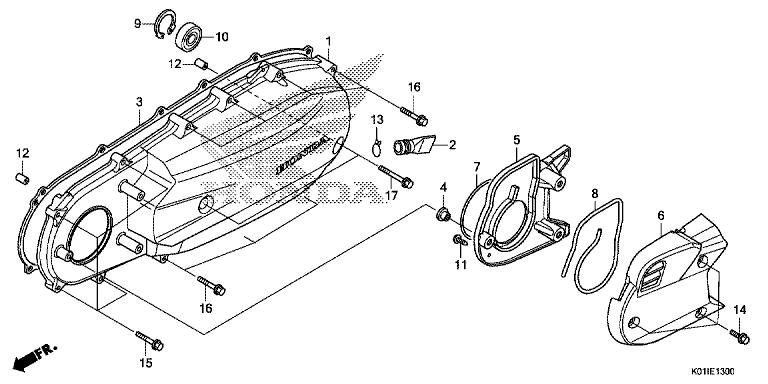

E-13 LEFT SIDE COVER
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Cover Assy., L. Side (11340-K01-900) |
E | €201.82 |
|
| 2 |
Tube, Drain (11343-KVG-900) |
E | €3.92 |
|
| 3 |
Gasket, L. Cover (11395-K01-900) |
E | €14.70 |
|
| 4 |
Collar (19416-KEY-900) |
E | €3.96 |
|
| 5 |
Duct, L. Cover (19641-K01-900) |
E | €24.54 |
|
| 6 |
Cap, L. Cover (19642-K01-900) |
E | €15.58 |
|
| 7 |
Seal, Belt Cover Duct (19645-KWN-900) |
E | €2.78 |
|
| 8 |
Seal, L. Cover (19649-K01-900) |
E | €4.78 |
|
| 9 |
Circlip, Internal, 32Mm (90652-KVB-900) |
E | €2.57 |
|
| 10 |
Bearing Comp. (6002Uu) (N (91005-KVB-900) |
E | €18.94 |
|
| 11 |
Screw, Tapping, 4X16 (93903-24480) |
E | €0.47 |
|
| 12 |
Dowel Pin, 8X14 (94301-08140) |
E | €1.75 |
|
| 13 |
Clip, Tube (C12) (95002-80000) |
E | €0.68 |
|
| 14 |
Bolt, Flange, 6X18 (96001-0601807) |
E | €2.03 |
|
| 15 |
Bolt, Flange, 6X28 (96001-0602800) |
E | €1.71 |
|
| 16 |
Bolt, Flange, 6X40 (96001-0604000) |
E | €1.57 |
|
| 17 |
Bolt, Flange, 6X65 (96001-0606500) |
E | €2.14 |
|
