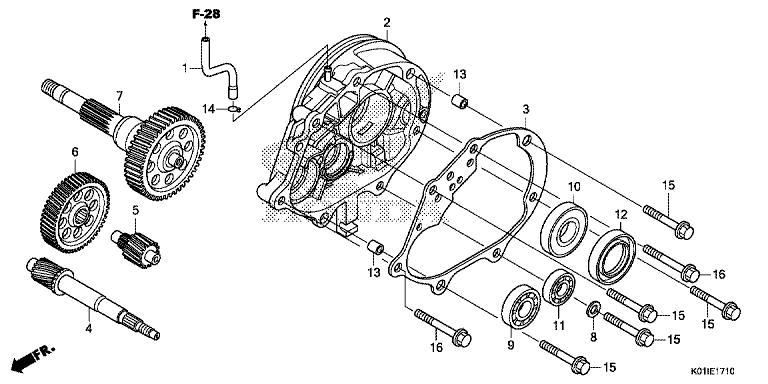

Honda SH125DSE (2014) E-17-10 TRANSMISSION
E-17-10 TRANSMISSION
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Tube, Mission Breather (11211-K01-900) |
E | €5.03 |
|
| 2 |
Case Comp., Mission (21200-K01-900) |
E | €102.58 |
|
| 3 |
Gasket, Transmission Case (21395-KZR-600) |
E | €10.81 |
|
| 4 |
Driveshaft (16T) (23411-K01-901) |
E | €104.98 |
|
| 5 |
Countershaft (13T) (23421-KZR-600) |
E | €46.16 |
|
| 6 |
Gear, Counter (54T) (23422-K01-900) |
E | €57.75 |
|
| 7 |
Gear Comp., Final (44T) (23430-KZR-600) |
E | €149.67 |
|
| 8 |
Washer, Sealing, 8Mm (90495-MN5-000) |
E | €2.57 |
|
| 9 |
Bearing, Radial Ball, 620 (91004-KZR-601) |
E | €15.30 |
|
| 9 |
Bearing, Radial Ball, 620 (91004-KZR-602) |
E | €15.30 |
|
| 10 |
Bearing, Radial Ball, 620 (91009-KWN-901) |
E | €18.76 |
|
| 10 |
Bearing, Radial Ball, 620 (91006-KAB-004) |
E | €30.50 |
|
| 11 |
Bearing, Radial Ball, 620 (91006-KZR-602) |
E | €15.30 |
|
| 11 |
Bearing, Radial Ball, 620 (91006-KZR-601) |
E | €15.30 |
|
| 12 |
Oil Seal, 34X52X7 (91204-KWN-900) |
E | €12.41 |
|
| 13 |
Dowel Pin, 10X12 (94301-10120) |
E | €2.07 |
|
| 14 |
Clip, Tube (C9) (95002-50000) |
E | €0.64 |
|
| 15 |
Bolt, Flange, 8X45 (95701-0804500) |
E | €1.64 |
|
| 16 |
Bolt, Flange, 8X55 (95701-0805500) |
E | €2.57 |
|
